some tuning on the plinkster( build thread ill keep goin )

February 4 2017 at 6:19 PM

robny  (Login robnewyork)
YF

so far ive opened up the transfer port, the barrel and the valve port to .153.. that did nothing.. Then i wet sanded the lead in on the barrel , that made cycling a dream.. Ive been messing with hammer springs, but theres really no room at the back for binding or coiling up, so i ground 1/8th inch off the hammer so the sear engages a bit earlier.. I tried the 760 and disco hammer springs, Yes they work but the length isnt right, so I just ordered a paintball hammer spring that Im familiar with and can be cut to length.. ( explaining the hammer spring constriction is hard unless you have one.. HERES THE VALVE pic

photo tuning the PLINK.jpg

Anyway.. what I did was measure how much preload was on the valve stem.. Then , to add volume and reduce preload all at once i simply chucked it in the lathe, took a mm at the back wall , reassembled , and repeated till i felt a reduction in force to open the valve.. SO far soo good and I can still go further.. I did not have a good spring to substitute the stock valve spring , but when I do , that will be a huge gain.. I then proceded to part off most of the valve threads, they are not part of the seal , and again , a tiny gain in volume..
My stock numbers were 605 peak , and quickly dropped off to 585 ish for the rest of the usable string.. I just shot a crosman premier at 667fps for the first shot , and then leveled off in the 640s.. So im making progress. With the lighter valve stem spring , and longer hammer spring ,. I should be able to reach my 700 goal.Oddly , shot count hasnt changed noticeably , well yet'
.153 port job doesnt take much material , maybe .020

photo 153 port.jpg



This message has been edited by robnewyork on Feb 12, 2017 7:54 PM



 Respond to this message
AuthorReply
VAF
(Login VAFarmer)
YC

Nice, what

February 5 2017, 1:30 PM

Premiers were they, the 7.9 or 10.5s?

God bless,

Farmer


 Respond to this message

robny
(Login robnewyork)
YF

7.9s , my gun came shooting slow , another Obvious mod

February 5 2017, 1:36 PM

photo flat HAMMER.jpg

since the hammer impacts the valve and the stem is soo short, to increase the duration of the shot , i shaved .040 off the back of the valve thus increasing dwell time.. Time to go outside and chrony now.. The obvious risk now with the lighter valve spring installed and the preloaded hammer spring , is the valve will leak while not cocked , easily reversible..ALL WORKED perfect, 670 fps high, then settles into the low 650s and high 640s ,so the settled numbers are better, even if the peak is only 3-4 fps higherr.. if i wait a min between shots 667 popped back up.. Im LOVING THIS GUN.. really responsive to these small tunes..USable shots is still over 30 (600fps+
IM now at 678 fps high.. Not too shabby from the 605 starting point.

and as i go along , im upgrading hardware, need to get some cap heads black , but these lil things take 4 mins so why not have imperial pitch with better grade steel

photo upgrade screws.jpg

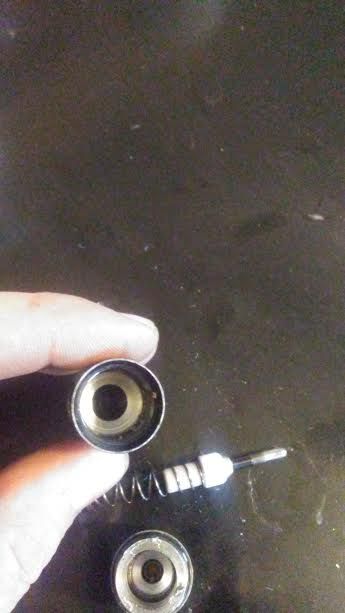

AND AGAIN , more volume , numbers still sitting the 650 average range with peak 670

photo more volume.jpg



This message has been edited by robnewyork on Feb 5, 2017 5:15 PM



 Respond to this message
Scot Laughlin
(Login classicalgas)
YF

I think you are seeing better self reg with the lighter valve spring

February 5 2017, 10:22 PM

which is why you don't see less shots with higher average power.

Unless you see evidence of the striker hitting the valve body under normal pressures, trimming the back wont do anything but encourage leaks (shorter bearing area for the valve stem)the impact you mentioned..at normal fill pressure?

With the valve head down in a pocket like that one, more wall clearance will boost power...it wont take much increase at all.

Is the poppet really a cone base on a cone seat, like it appears in the pics?



This message has been edited by classicalgas on Feb 5, 2017 10:25 PM



 Respond to this message

Robny
(Login robnewyork)
YF

both conical , yes, strong sealing.. too much really........

February 6 2017, 12:26 AM

also, the gun Does crash the hammer into valve from the factory.. so i am getting more stem travel now id assume... ive not reduced the length of the " shelf" where to the 2 cones meet.. Didnt do much for numbers.. Im leveled off for now .. what im trying to figure out is why my peak number stays the same , yet my 10 shot average goes up ( shots 2 through 10 have a higher average, but shot 1 on fresh co2 is the same)



This message has been edited by robnewyork on Feb 6, 2017 1:46 PM



 Respond to this message

Robny
(Login robnewyork)
YF

new high with 7.9s is 701 FPS yayyyyyyyyyyy

February 6 2017, 1:56 PM

i got 805 but im not believing it , because i think the cloud caused the reading and nothing else has even been in the mid 700s.. NEW paintball hammer spring today!



This message has been edited by robnewyork on Feb 8, 2017 10:09 AM



 Respond to this message
Victor3
(Login Victor3)
YFOT

Been playing with mine (.22) today.

February 9 2017, 2:24 AM

Not doing much in an effort to increase velocity; just making sure the stock internals are cleaned up and polished where need be.

As you mention you did on yours, I polished the lead in on the chamber. Also lapped the port and throat to remove any burrs. Lightly polished the bolt. Smooth as glass now.

3 set screws holding the barrel to the receiver were really tight (center one had loctite on it) and they kicked up burrs on the OD of the barrel. The burrs scratched the anodizing on the ID of the receiver a bit as I removed the barrel. No biggie; I polished the mating surfaces.

Striker - I polished the two areas on the OD where it bears on the ID of the tube, as well as the angle where it meets the sear upon cocking. ID where the spring rides was a little rough and had some heat treat scale in it. Polished that up and radiused the "mouth" where the spring enters.

Tube - After cleaning (excessive) grease out I noticed what looked like minor corrosion, and little bumps on the ID in the area where the trigger housing is welded on. A little polishing with a flex-hone cleaned it up easily though. Slot where the bolt's cocking screw rides was a little rough, so I polished it up.

Trigger assembly - All parts looked good (after I cleaned off all the grease). I stoned the sear lightly where it contacts the striker. Minor trigger blade side play was easily corrected by squeezing its housing with pliers.

Valve - Looks beautiful as is (modding optional).

Transfer port - Bullet proof.

Co2 retaining cap - Perfect.

Magazine/single-shot tray - No issues.

Stock - Fabulous. Great fit & finish (comb is a bit high for stock sights if you have a fat head like mine. but great for a scope).

Be advised that the above-mentioned minor negative details are the nitpiking of an aerospace Quality Assurance dude. This is a fantastic little rifle with tons of potential.



 Respond to this message

robny
(Login robnewyork)
YF

yessir

February 9 2017, 9:23 AM






not much to mod really , unless looking for power gains./ Smoothing out the lead and the bolt really makes cycling nice.. I may chamfer the inlet to the magazine where the bolt passes so it will be somewhat self centering and perahps smooth that a bit .. Pretty crazy a gun for this much money doesnt really need much in the way of repairs



This message has been edited by robnewyork on Feb 9, 2017 7:42 PM



 Respond to this message

robny
(Login robnewyork)
YF

new ldc on the plink

February 9 2017, 7:42 PM

photo NEW LDC.jpg

made this from carbon fiber and delrin , ridiculously quiet.. not that i needed it quiet, just for kicks



This message has been edited by robnewyork on Feb 10, 2017 5:15 PM



 Respond to this message

robny
(Login robnewyork)
YF

new machined aluninum end cap for bulk fill

February 12 2017, 12:52 AM

photo cap installed.jpg

this will have a gauge and a drop down asa p[aintball adapter this week,then ill be able to fill the gun 5 different ways
hpa regged tank
co2 tank
12 gram
88 gram
stock co2 arrangement ( which i may bypass )

photo comparson.jpg

need to add 2 .750 orings



This message has been edited by robnewyork on Feb 12, 2017 9:32 AM



 Respond to this message

robny
(Login robnewyork)
YF

progress on bulk fill(pics )

February 12 2017, 1:41 PM

photo tapped adapter_1.jpg
photo spring.jpg

obviously i dont wanna lock it down till the drop down stainless tube and the gauge are installed, Just make it harder to work on with the disco foster getting in the way ( AS i said , this thing will be filled in 5-6 ways , anything someone one can fill it )
88 gram
12 gram'
attached paintball tank
bulk fill
3 co2s like stock
HPA into empty 88 gram.. etc etc

Anyway,someone may wonder why the recess before the 1/8th npt threads?? pretty simple, Its a tapered thread, and accordingly the gauge thread is tapered.. Needless to say the lockout , or seal point will leave the gauge proud iof the cap somewhere around 50-100 thou, so a recess allows for cleaners lines while still creating a perfect seal.. Hope that makes sense, some guys have different methods, the key is to drill deeper to accomodate the recess and still maximize thread engagement

photo ORINGED.jpg



This message has been edited by robnewyork on Feb 13, 2017 12:48 PM



 Respond to this message
Victor3
(Login Victor3)
YFOT

How will you seal the valve to the ID of the tube? n/t

February 14 2017, 2:27 AM

x


 Respond to this message

robny
(Login robnewyork)
YF

add a 113 oring to the valve ,more progress ( PICS

February 14 2017, 8:49 AM

photo PROGRESS.jpg

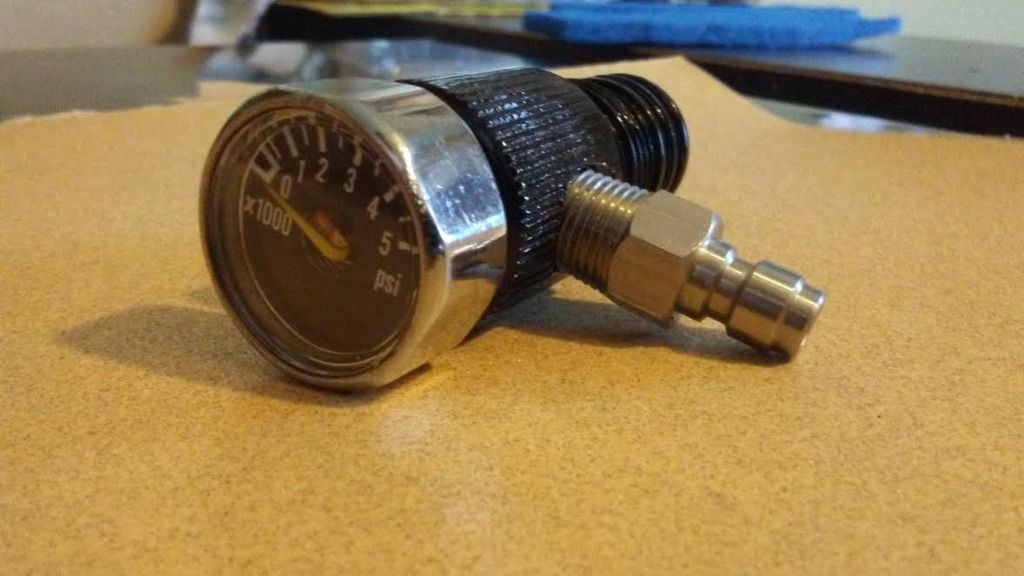

front hole is for the gauge , other side hole is for the stainless nipple that goes to the ASA adapter ( tank adapter


photo updates.jpg



This message has been edited by robnewyork on Feb 15, 2017 3:57 PM



 Respond to this message

robny
(Login robnewyork)
YF

more progress pics

February 16 2017, 11:33 PM

photo adapter COMPLETED.jpg


photo IDEA.jpg

just mocked up, final assembly when the 88gram adapter shows up


photo mockup 2.jpg

photo front VIEW.jpg



This message has been edited by robnewyork on Feb 17, 2017 12:41 AM



 Respond to this message

robny
(Login robnewyork)
YF

valve now oringed like the airmax

February 17 2017, 8:39 PM

photo VALVE ORINGED.jpg


i asssumed 113 would be best fit , 112 is way easier to get down the tube and still create a seal


 Respond to this message
