How to make rivets

July 29 2012 at 7:36 AM		   (Login SuzukiMutsuhito)
Missing-Lynx members


Response to Looking more 1/35 than 1/72 to the naked eye...
Hi, Peter.

Here is my way to make small rivets.

This copper sheet is drilled some small holes and pasted on a board.
I use 0.3mm, 0.35mm and 0.4mm diameter holes.

Rivets are made with sprue.

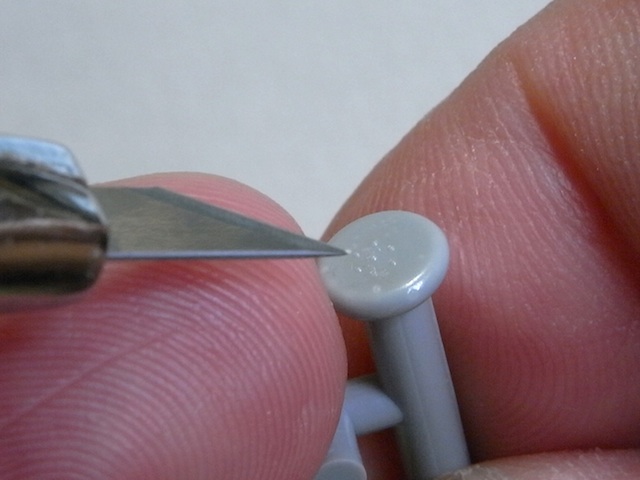

Heat one end of sprue and press melted part on the holed sheet immediately.

Rivets are molded.

Cut rivets.

When I set rivets on my models, prick them softly with a knife to glue and set.
Practice is required but I love this way.

Did it become helpful?

Mutsuhito


 Respond to this message
Responses

  1. Wonderful idea... - Paul Giles on Jul 29, 8:00 AM
    1. Works a treat.... - Paul Giles on Jul 29, 2:58 PM

  2. Now that's a first... - Peter Sisung on Jul 29, 9:17 PM
