Hello again all

While Stuarts Polikarpov I-15 is quickly coming together, I spend some time flirting with AMS - oh the horrors sad.gif !

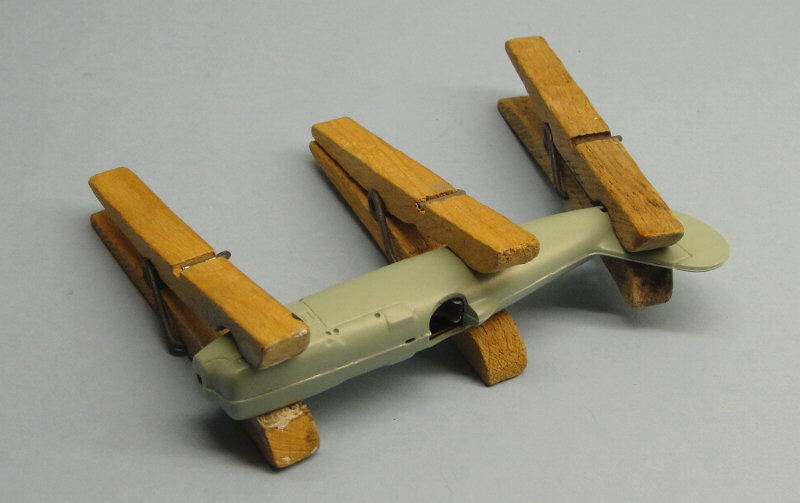

Last time we glued the fuselage together


AND we learned the cowling shape wasn't supposed to be flat

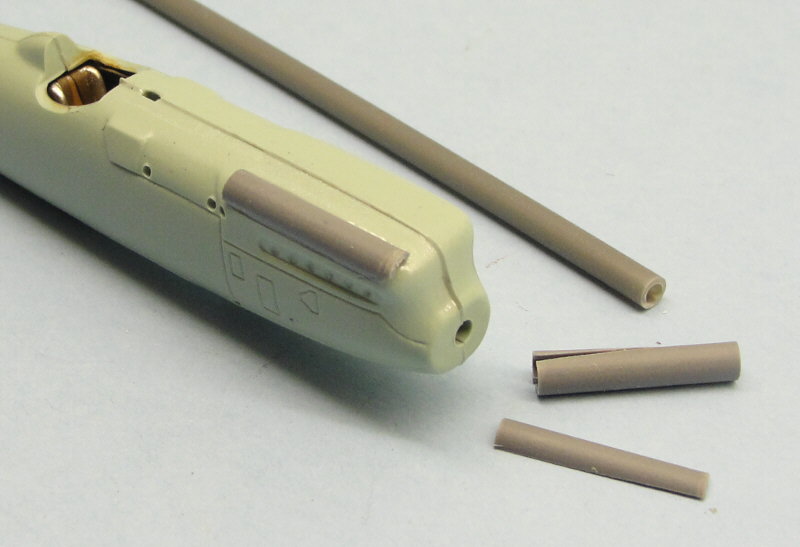

So we tried to add some curves in the right place

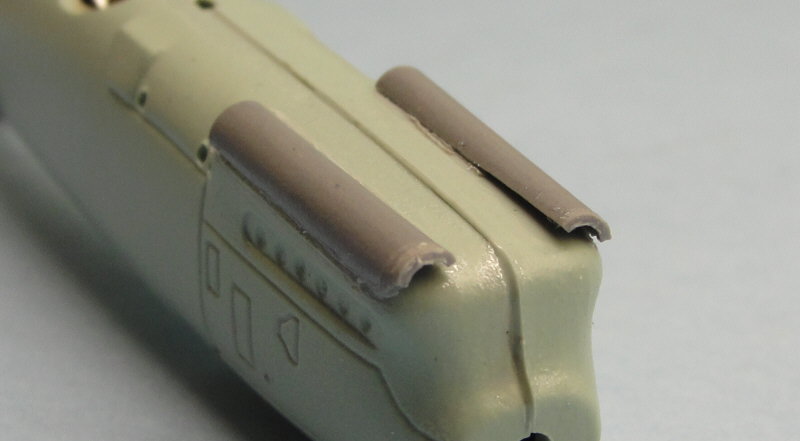

Naaa... this does not look good

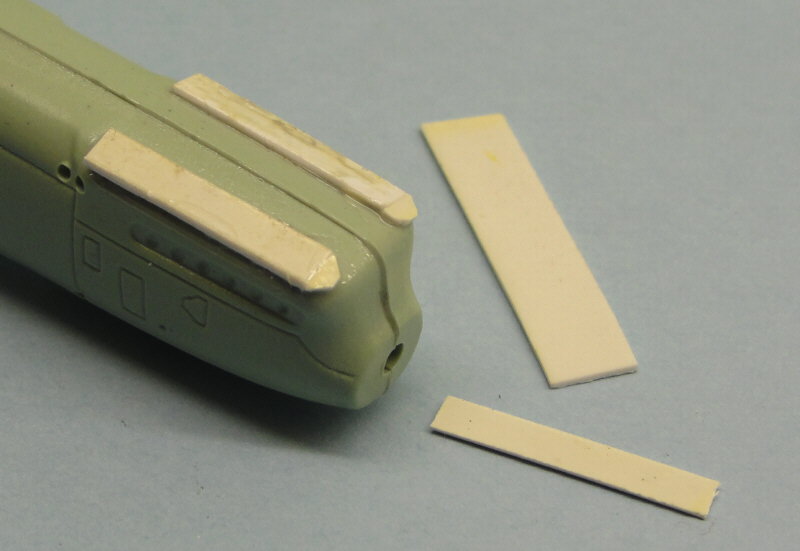

Try again with plastic card

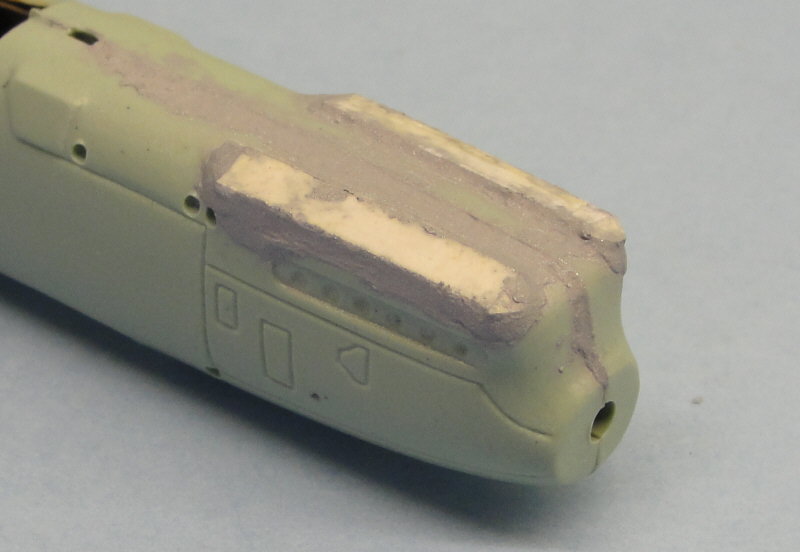

And some filler


And some sanding


We also learned the real thing had some guns

There were no guns on my poor, scarry I-3

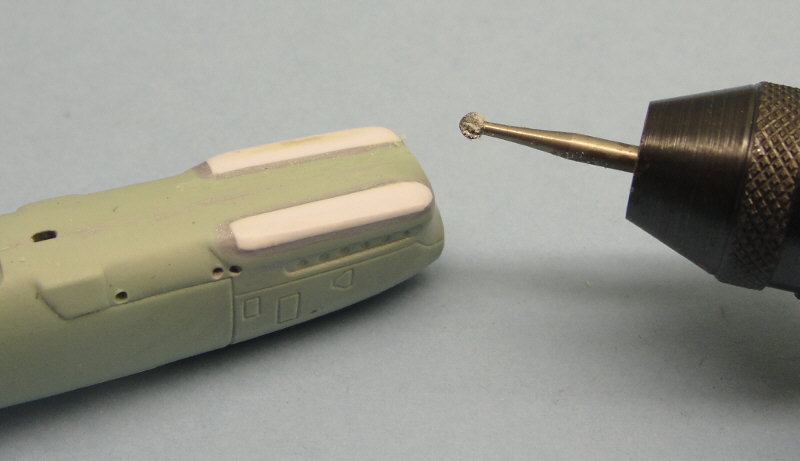

Drill some cut outs

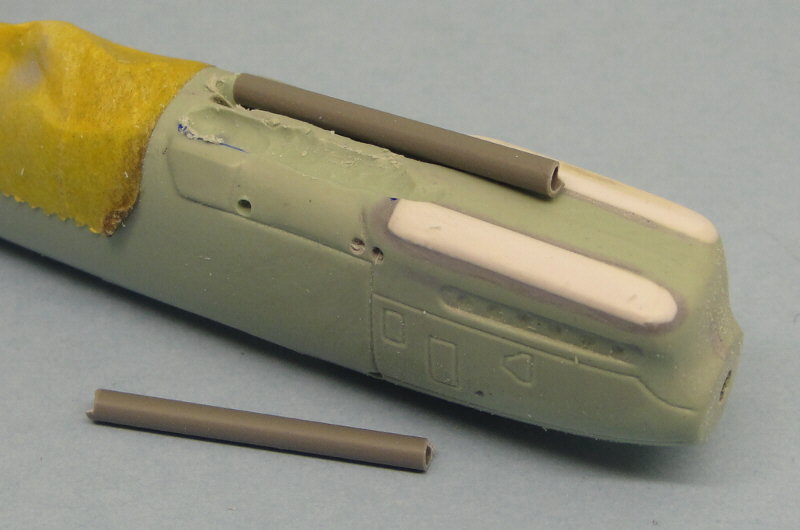

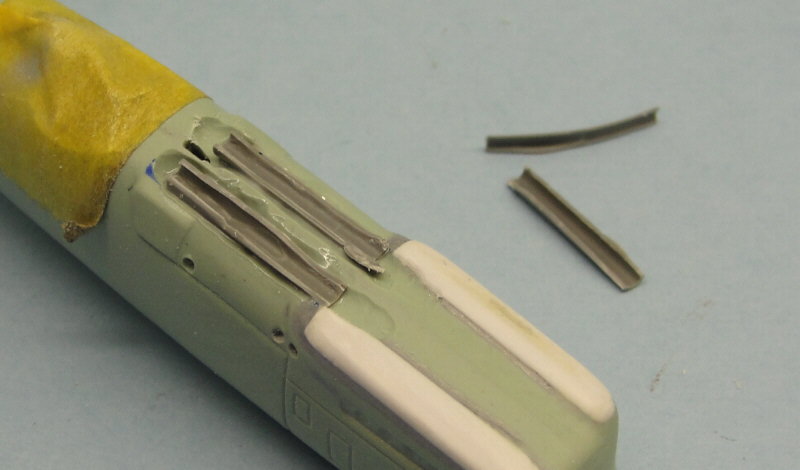

Plastic rods helped me to get symetric cut outs for the machine guns

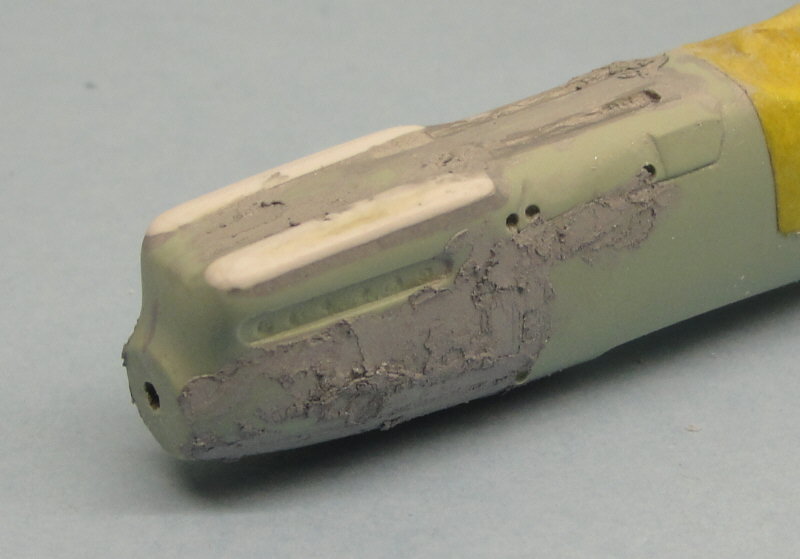

Some filler (again) to blend things in

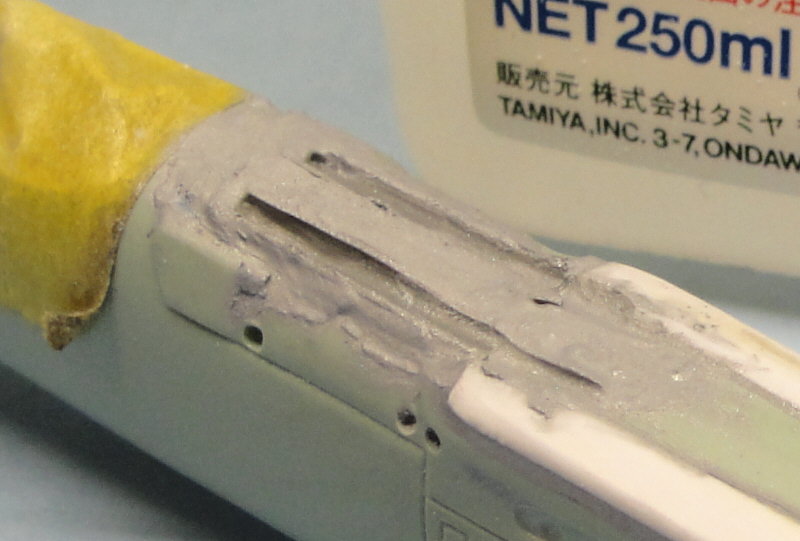

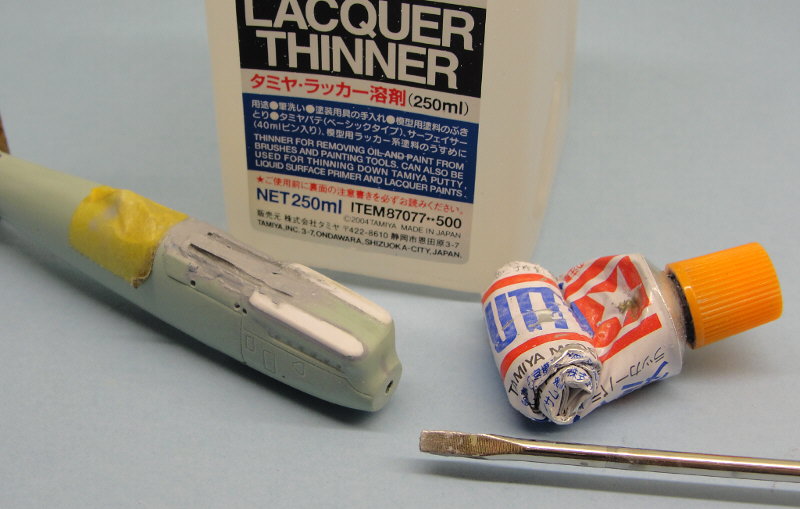

Tamiya Lacquer Thinner makes the filler more fluent, and easier to work with


Then I decided to fill and sand the deep panel lines as well

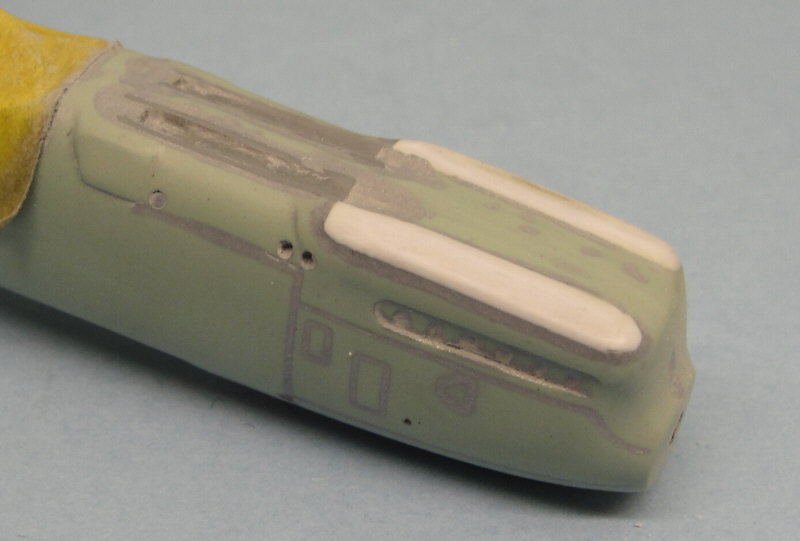

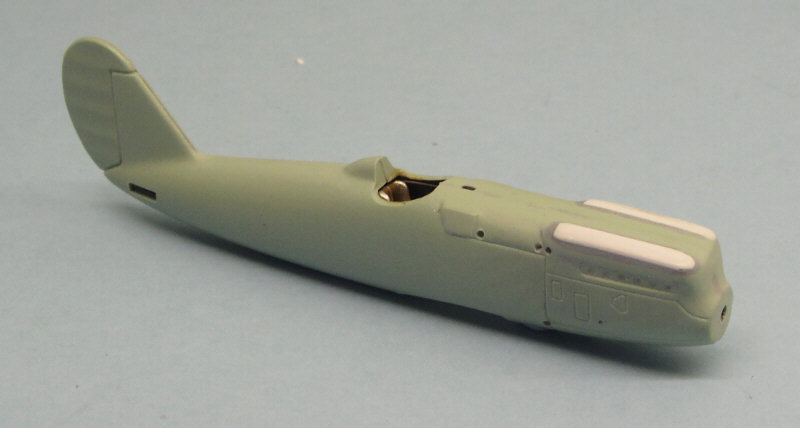

This is more like it

But AMS was slowing me down... and Stuart was quickly moving ahead


I better struggle along more quickly !

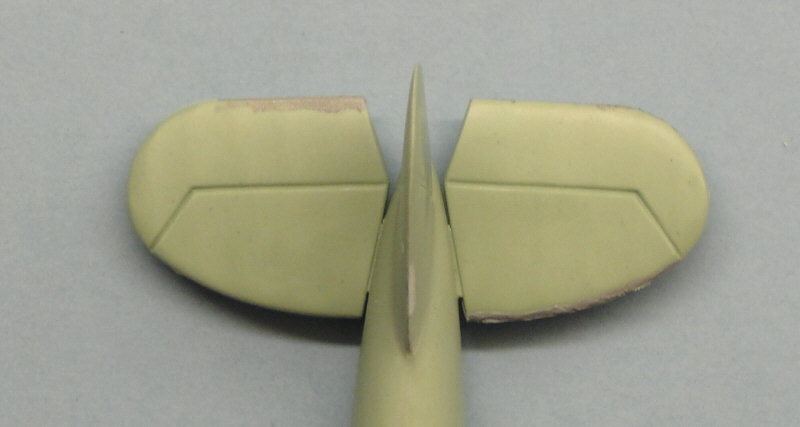

And these straight horizontal stabilizers were far from a perfect match for the curved fuselage


But glue works wonders on this soft plastic

Only a little bit of filler needed at the leading edge

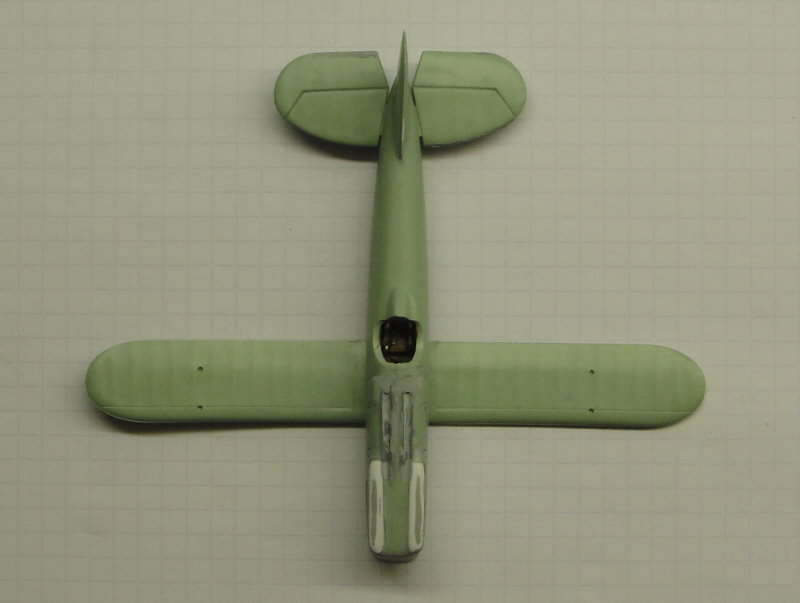

Butt joining the lower wing - no allocation pins whatsoever - trying to keep everything straight


I spend too much time on AMS, making these cowling bulges and gun cut outs... but somehow I think this was really needed

I was stalling - trying to decide to thin down the cockpit walls, and create some new horizontal stabilizers because as per kit they are a little too small

But then Stuart posted - and I remembered Adrians words, to try to make this kit look good with what is in the box - so now it's a mix of OOB and AMS... but we have fun



* * *
William De Coster / Belgium be.png / past builds on HS : Plastic Stories

- Airfix - Bristol Beaufighter Mk.II : Part I - Part II - Part III - Part IV - Part V - Part VI - Part VII (incl Flanders Modelling Festival 2011 show report) - Part VIII (incl Patherscup 2011 show report Pt.2) - Part IX (incl Beskyd Model Kit 2011 show report Pt.2) - Part X - Part XI - Part XII /The End new.gif
- Vami Models - resin Me P. Schwalbe : Part I (incl Pantherscup 2011 show report Pt.1) - Part II (incl Beskyd Model Kit 2011 show report Pt.1)
- AGA - Polikarpov I-3 : Part I new.gif

Just like the perfect woman doesn't exist, I will never build a perfect model.
Puts me on a par with God
