Flying sharks - part II : Fun with a PE and resin interior

October 11 2011 at 1:47 PM

  (Login eazyprinz)
HyperScale Forums
from IP address 82.146.98.179

Greetings

Last week I started the new Airfix P-40 on the Airfix forum

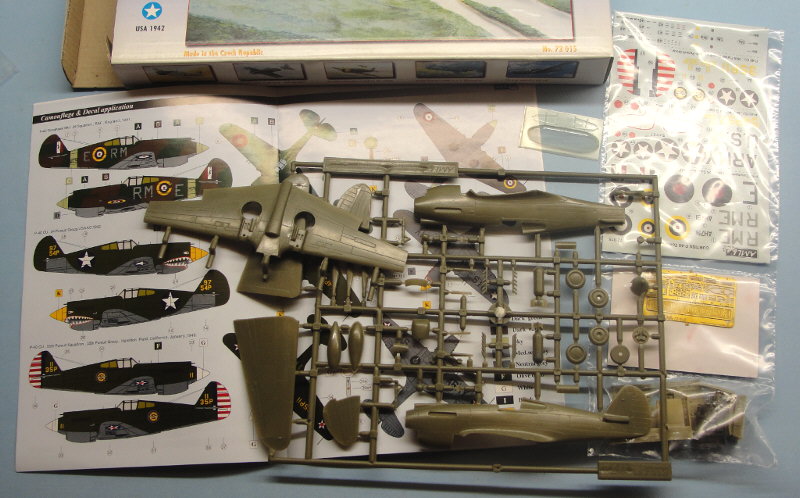

I had decided to built it together with the Trumpeter and one of the AML P-40 kits


Pretty soon I realized I had to spend a lot more time on the AML kit

I had never worked with a PE and resin interior before


I decided to try it - and post it here since it's low on Airfix content

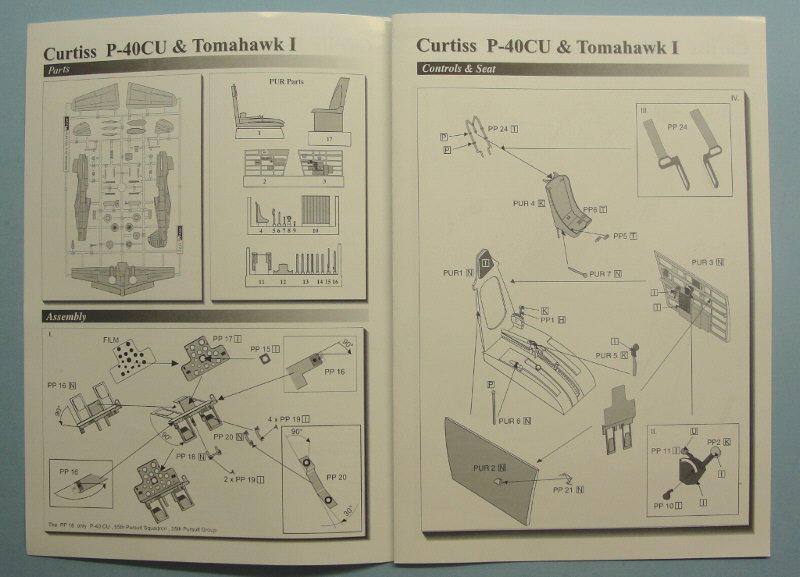

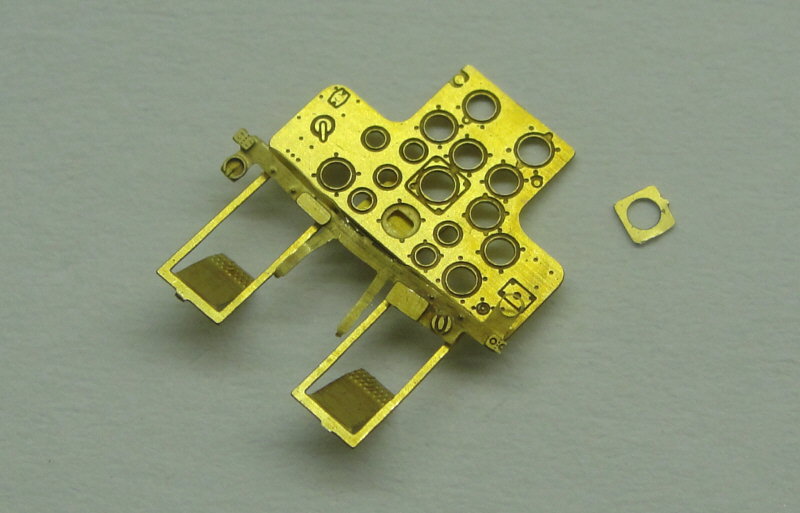

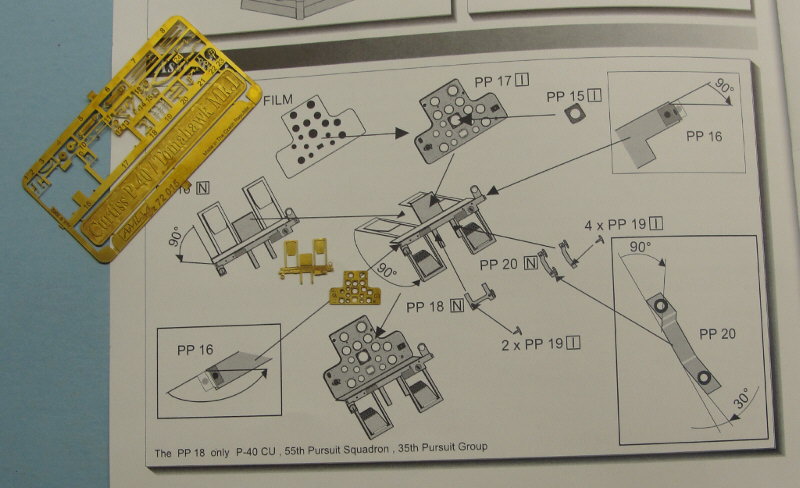

First : figuring out what to do with the PE instrument panel and pedals

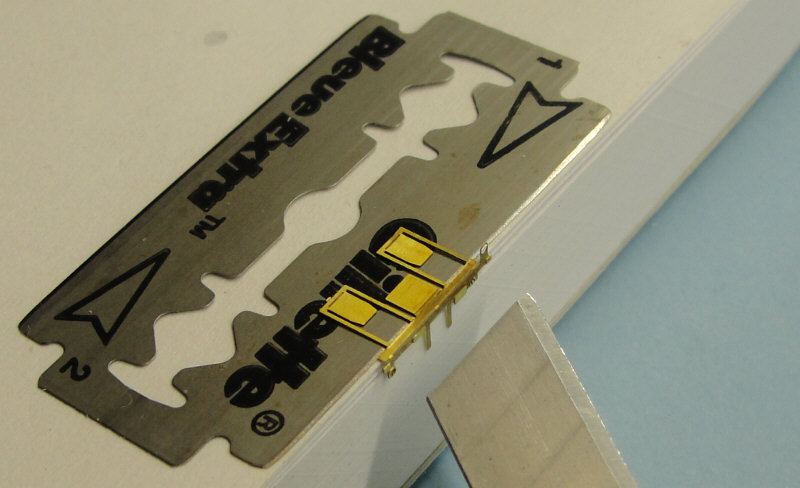

It takes some ingenuity to bend the pieces into shape


After a few minutes :

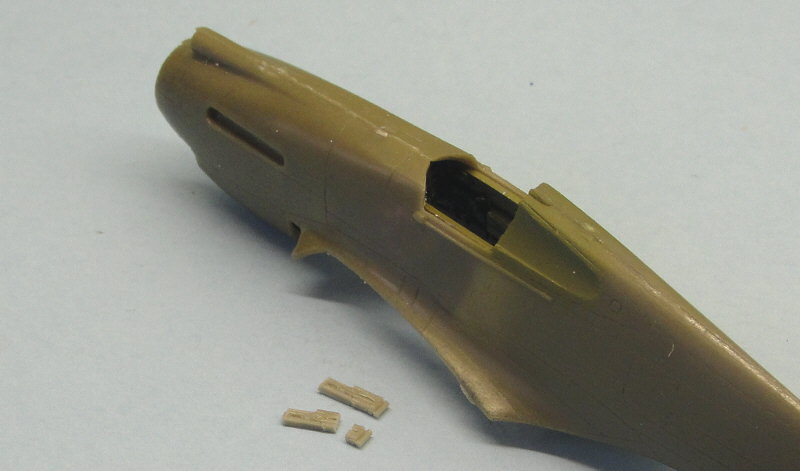

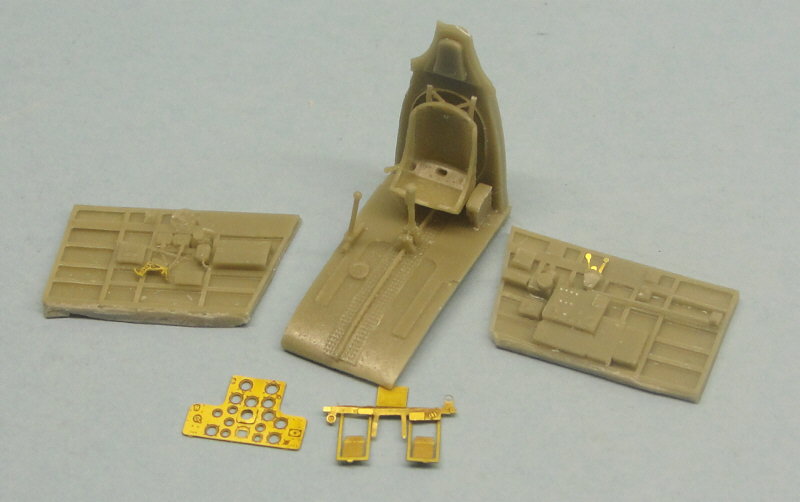

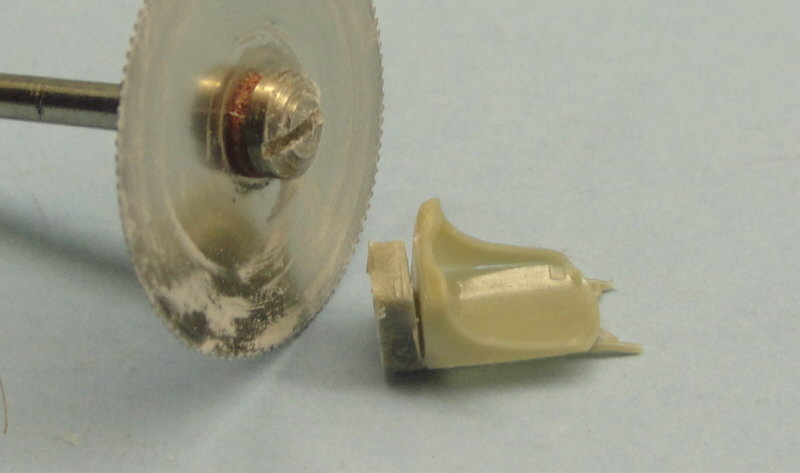

Cutting the seat from the casting block


It sure is the most detailed interior of the three kits


Painting with interior green was easy


I had read many horror stories about resin side panels being too thick

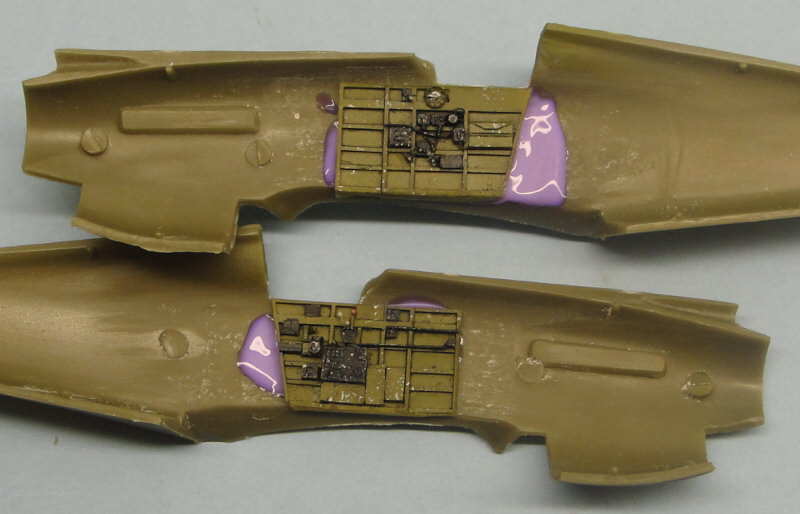

So I dremeled down the interior fuselage sides


A test run with Maskol - offering me an easy way out when things go legs up

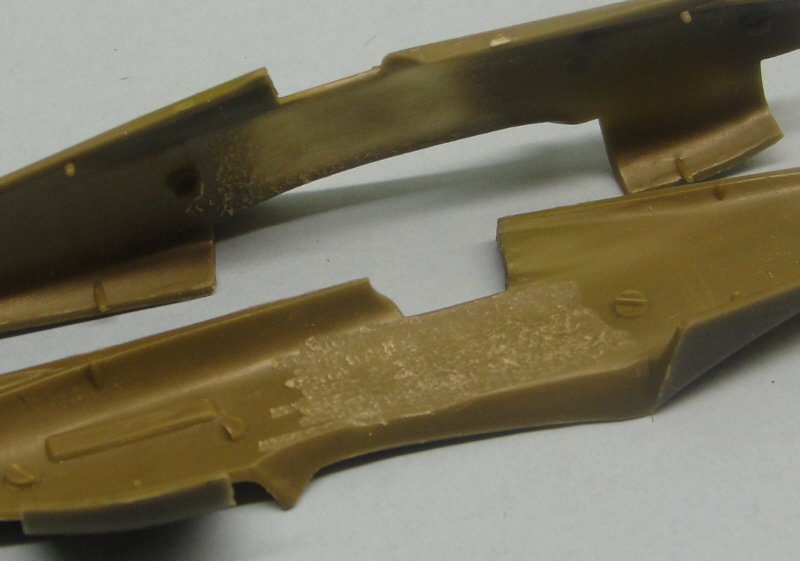

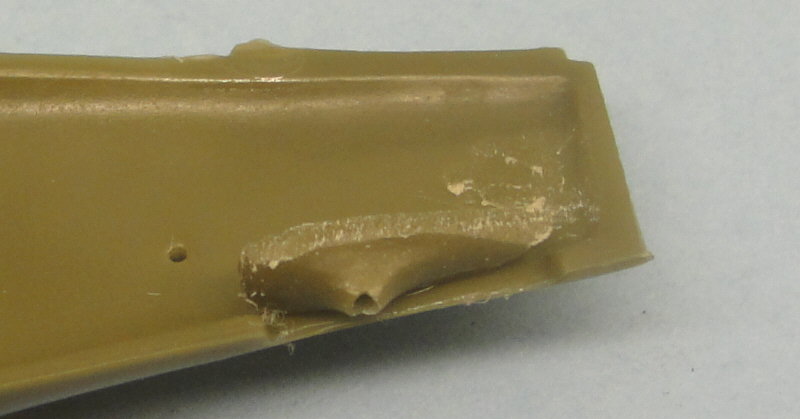

It was not a good fit - and I learned I could cut off some of the "out of view" resin corners for a better fit


Much better


Well... what did we expect ?

The PE instrument panel was too wide - and didn't fit

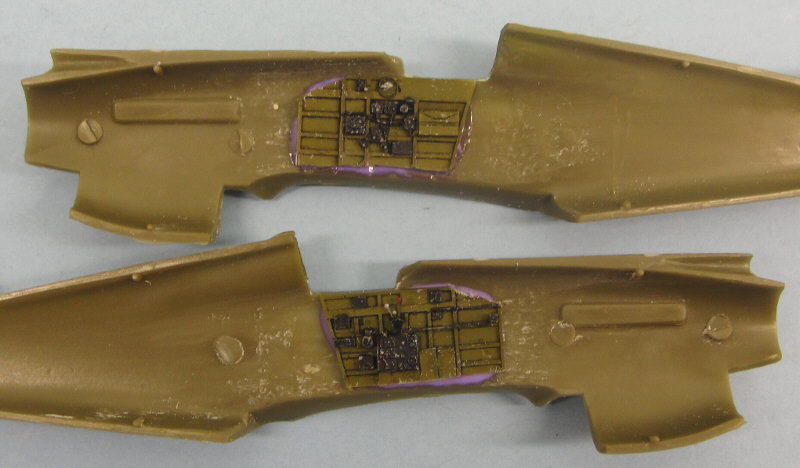

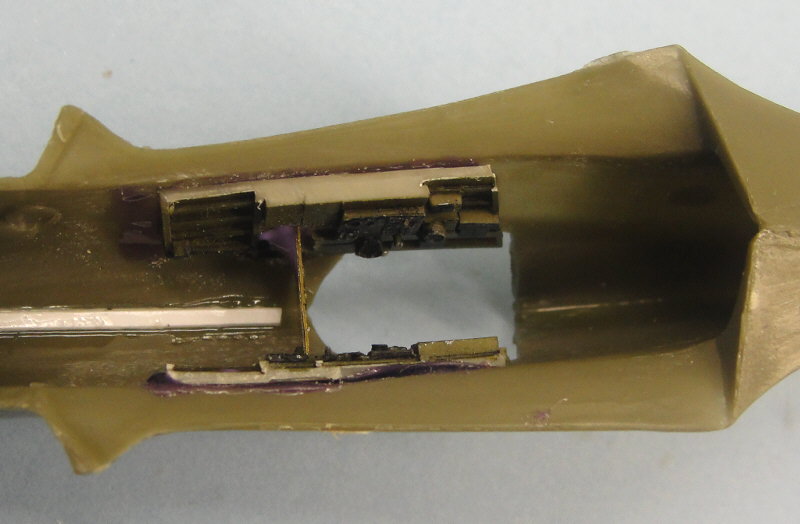

I decided to drill "slots" in the resin side panel parts - these locations were mainly out of view anyway


Fit was better

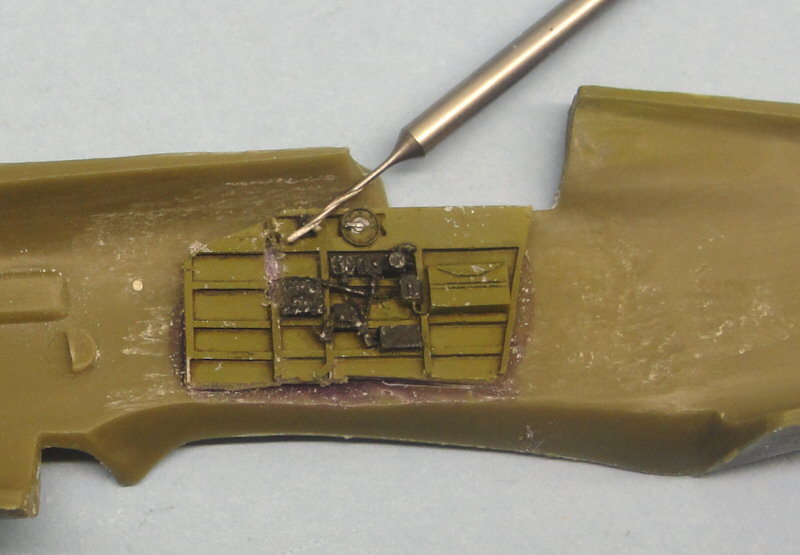

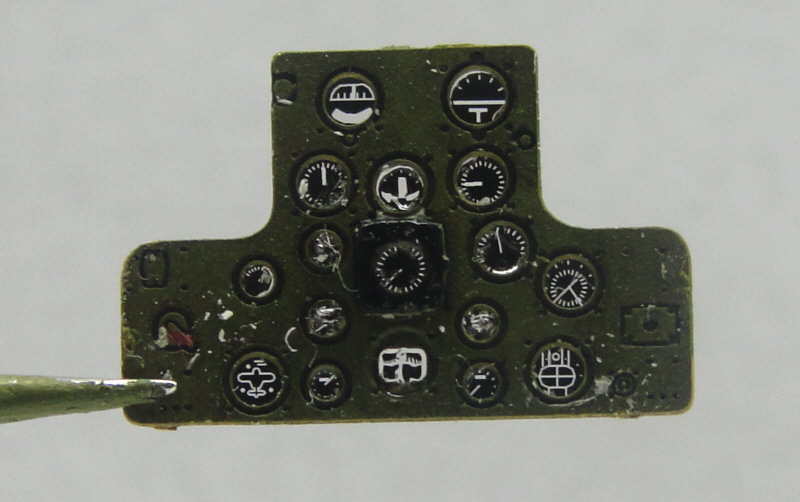

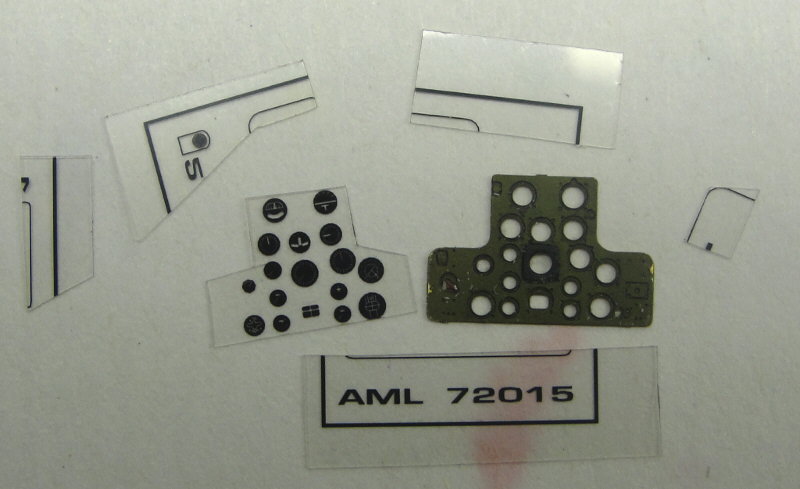

Time for the instruments - first time I got to play with such a pre printed "film"


WOW !

I need to play more with instrument films !


The tail wheel "well" (also!) needed to be thinned down for a good fit


I added some evergreen rods along the fuselage joins - for easier fit

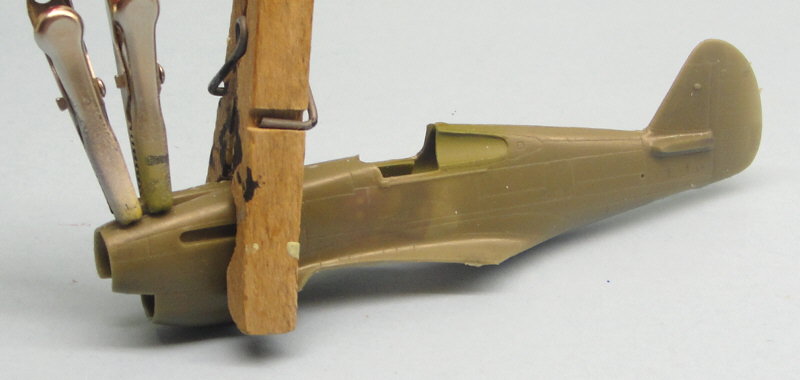

I first glued the rear fuselage together

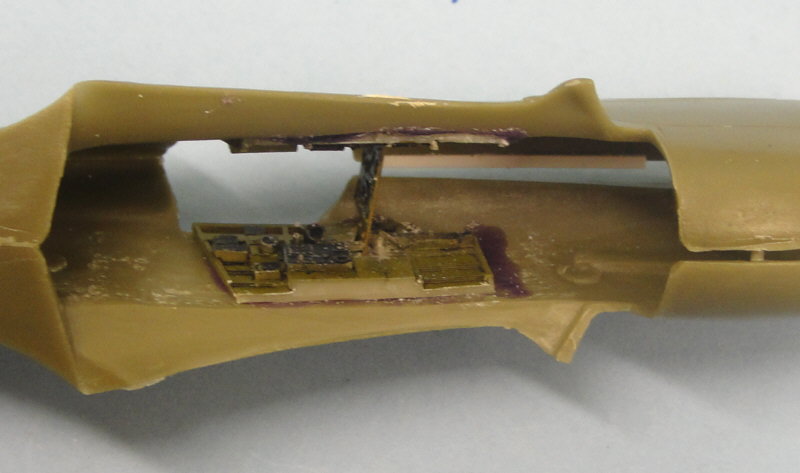

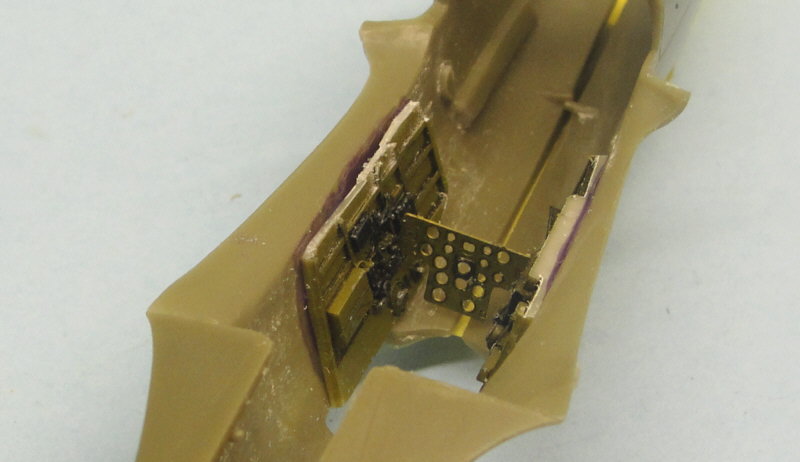

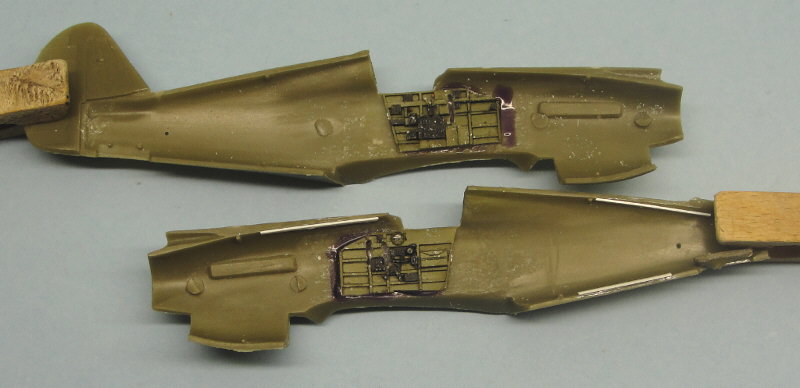

Then I trapped the instrument panel between the fuselages in the slots I had made in the resin side panels


Then I glued the front ends together


Almost straight and good enough

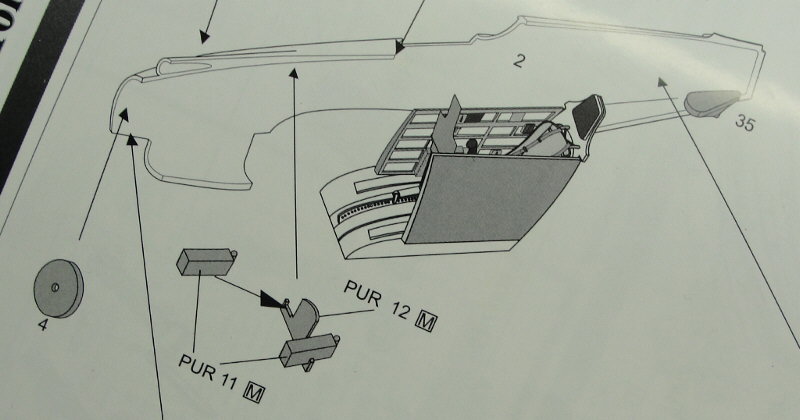

I still had to add the gun handles (parts PUR,11)

They were too long (intended to go past the instrument panel)


I cut the rear parts off - since there was no room for it - and it was out of view anyway


And glued these in place

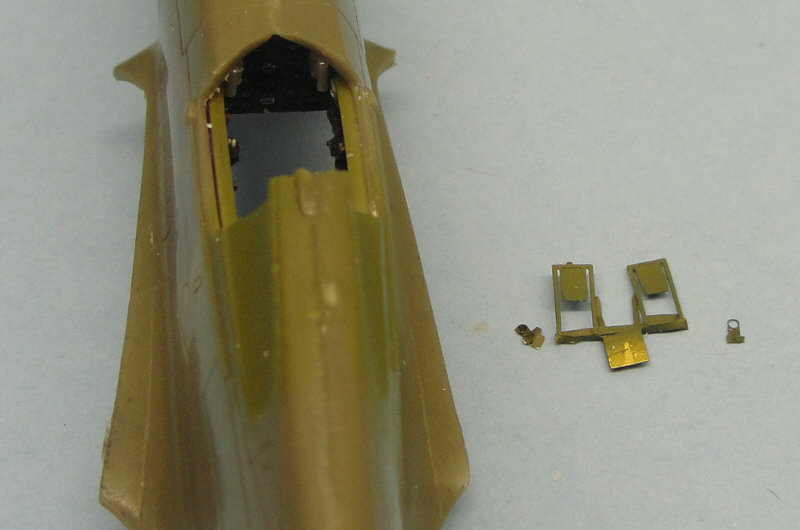

I also had to narrow down the pedal PE piece by cutting of the tiny side parts


Pedals ready

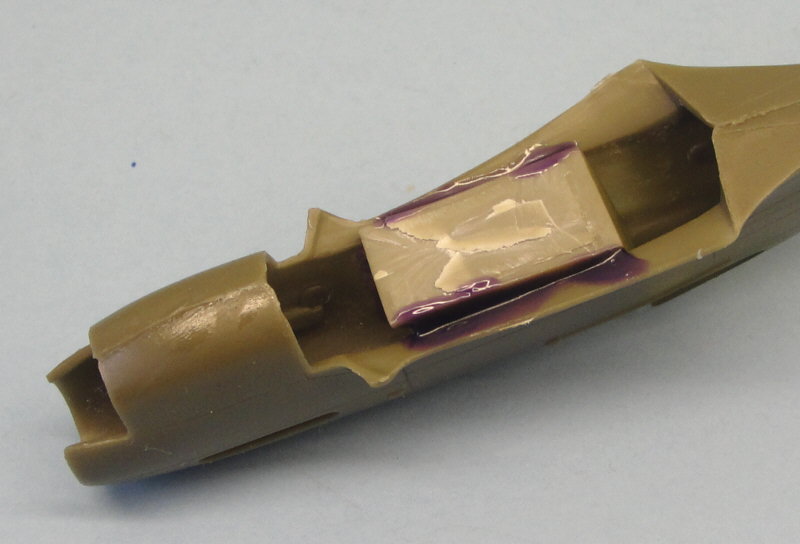

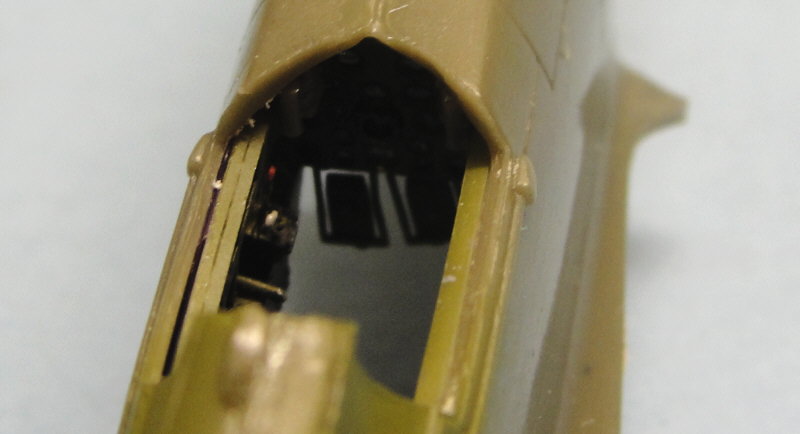

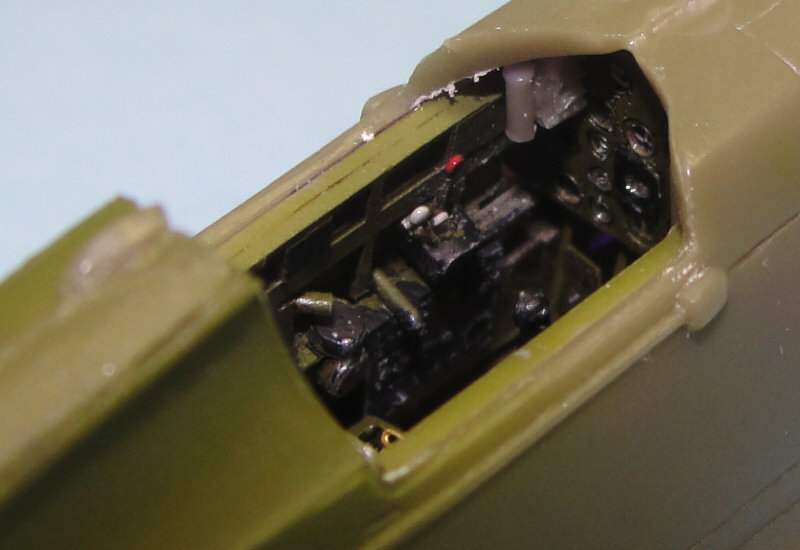

Then I glued the cockpit tub in place with Maskol - good stuff to keep things in place


All this work took me 3 evening - to get to this point

It sure looks nice - though next time I will thin down the resin side panels as well

And heck, I still have to paint the gun handles


All 3 kits are now ready for wings

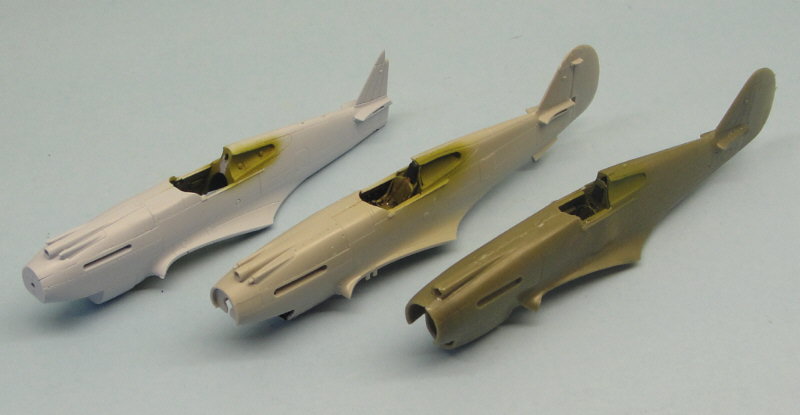

Left to right, Airfix, Trumpeter and AML


I realize PE and resin parts are a bit "frowned upon" - but these parts were included in the kit, so I wanted to try them

They do add to a more detailled look, though it demands some work - but I'm pleased with it though I wish I had sanded down the resin side panels too... ah well, next time

Thank you for your attention for one of my most boring posts so far



* * *
