Flying sharks - part V

October 30 2011 at 3:59 PM

William De Coster  (Login eazyprinz)
HyperScale Forums
from IP address 195.144.82.54

Greetings all

Last time I was looking for my favorite axe for my banana shaped AML P-40


I didn't find it - probably the girlfriend has it again

All I was left with, was my little saw


... and some frustration to vent

Ah, the pleasures of being human happy.gif !

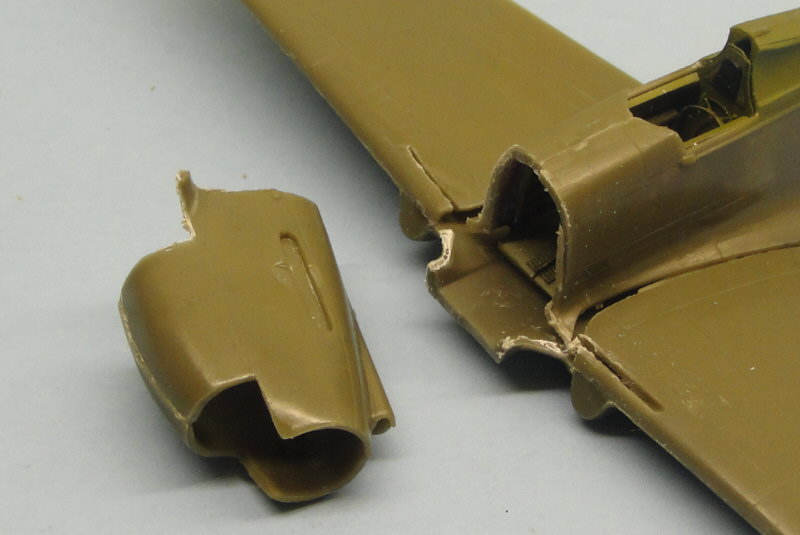

Back in the race

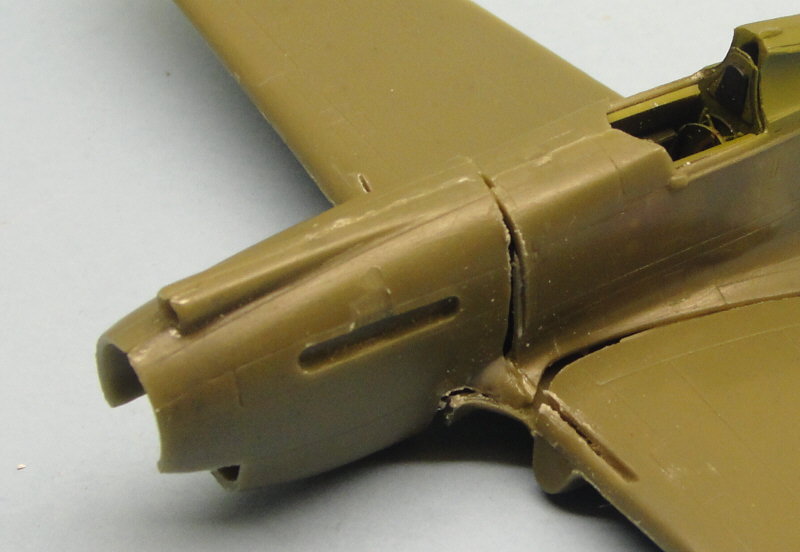

Granted, some sanding and filling was required


And I needed to fix all the collateral damage

The cuts in the wing and the drill head skid marks around the exhausts

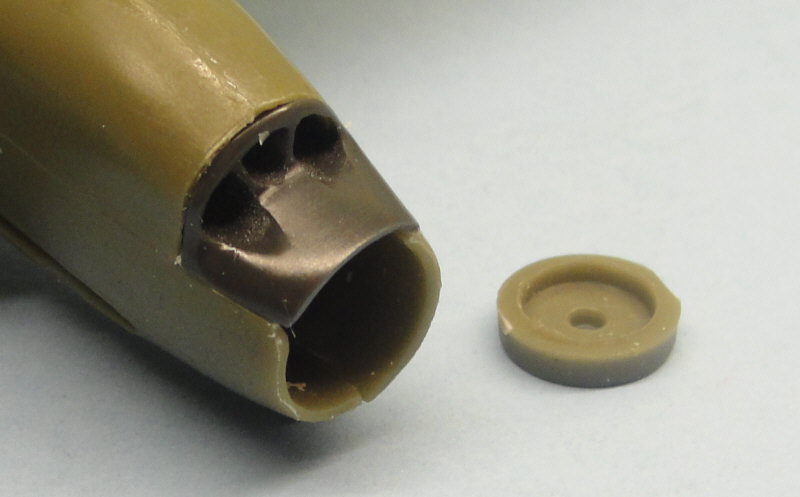

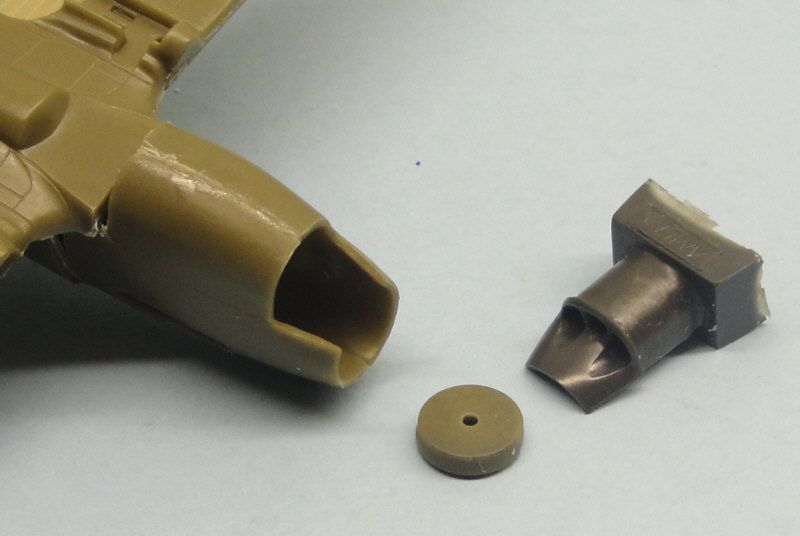

But first I wanted to install the radiator

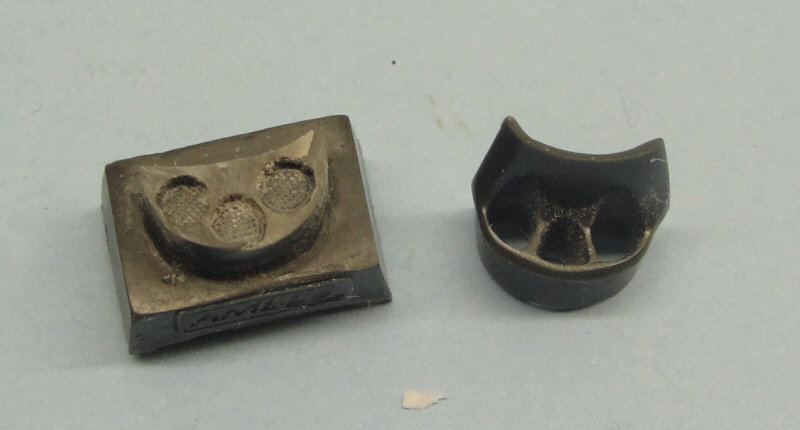

Which is a nice resin casting

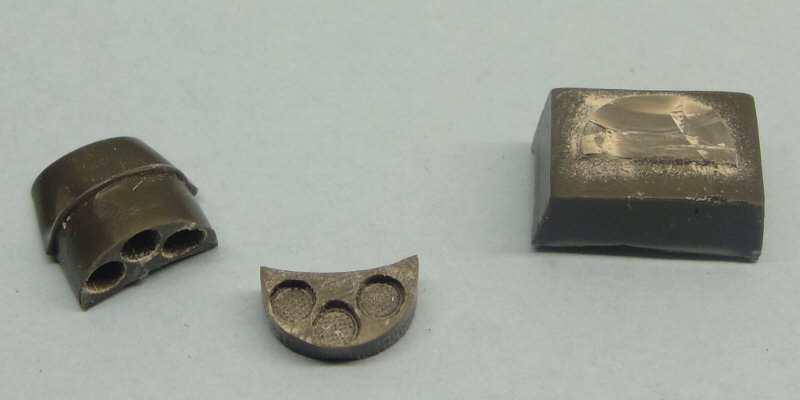

And which needs to be cut at the correct place

... which is not in the middle (doh!!!)


But at its feet - very close to the casting block


I glued the pieces back together

With some peeking, you still can see the fine radiator mesh

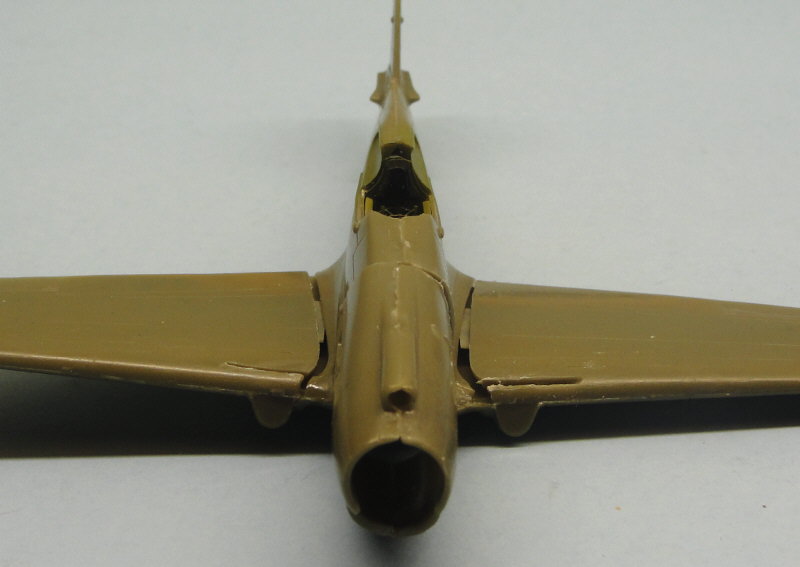

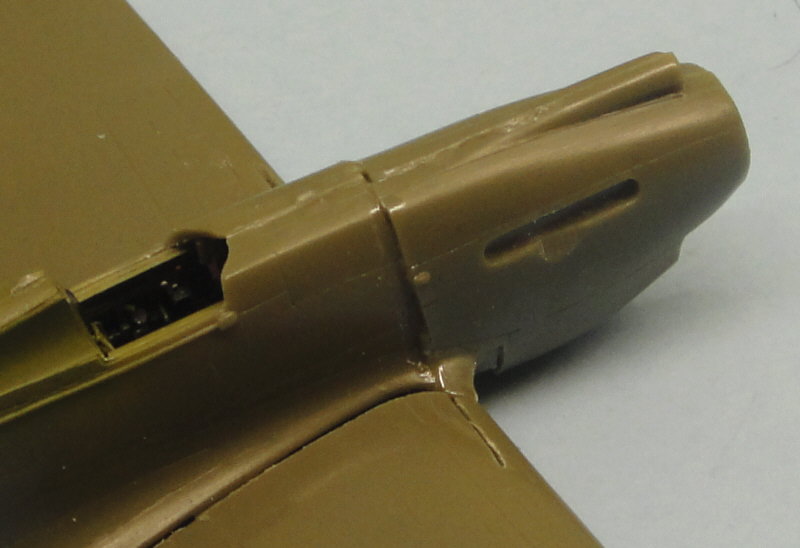

It was a reasonable fit


... and this almost was sad.gif !

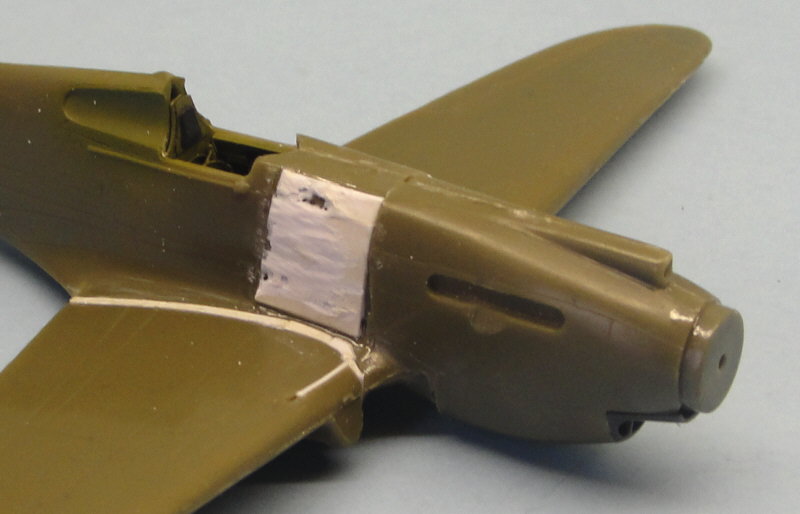

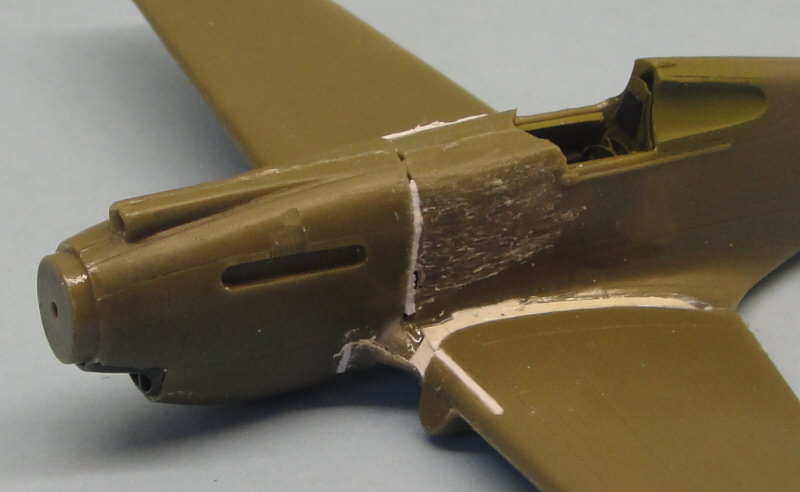

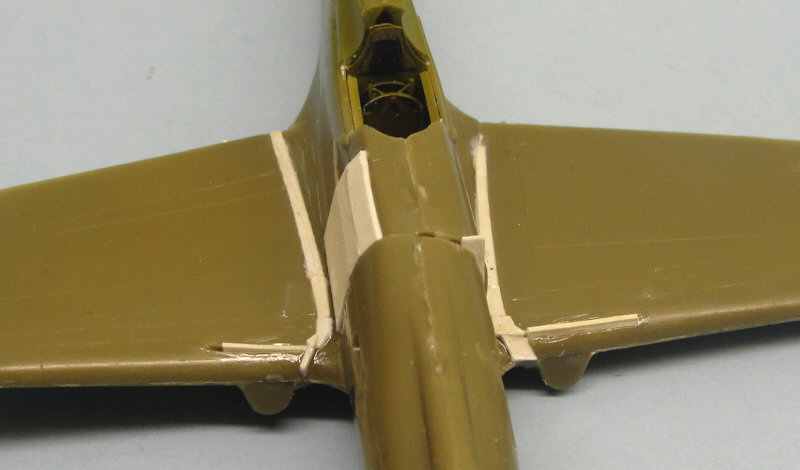

I first covered the big gaps with pieces of plastic card and strips


And I did some dremeling


So I wouldn't have to sand too much

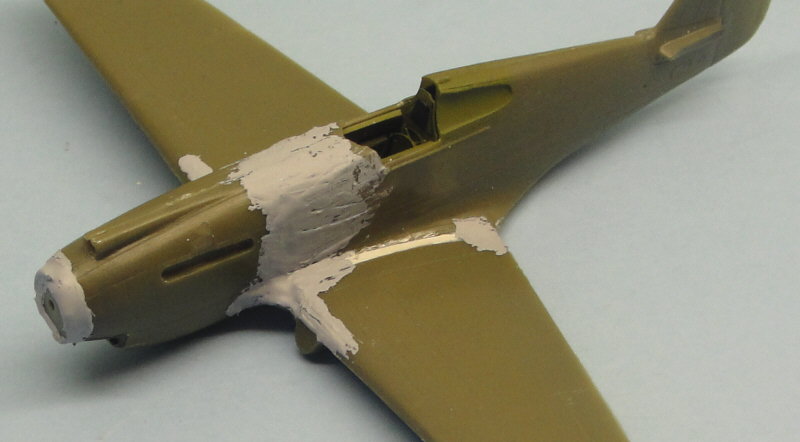

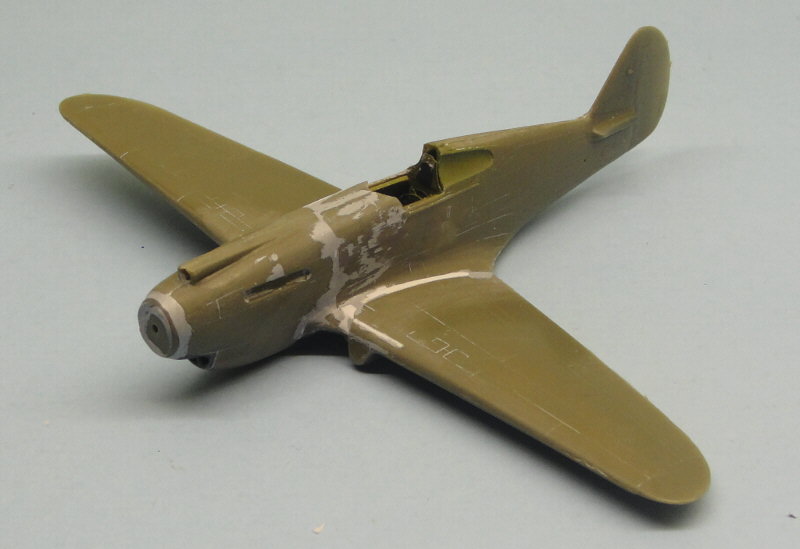

Then filler


And then I read about Robert Rensch (his build on Internet Modeller)

He bended the wings for more dihedral to close the gaps


Interesting approach - but too late for me now

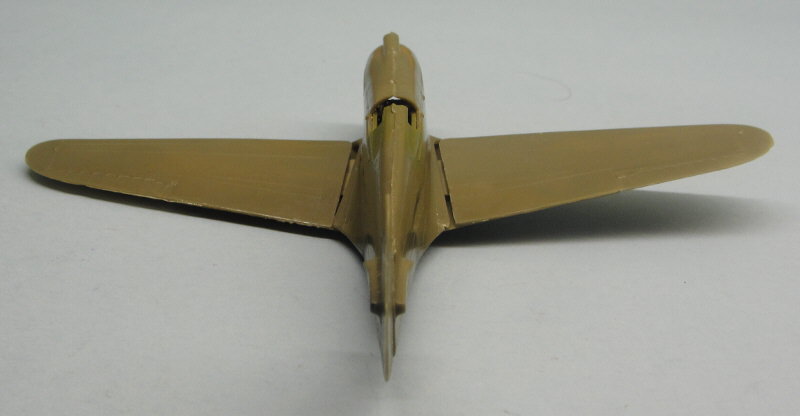

Luckily I still had some dihedral, so we dully continued

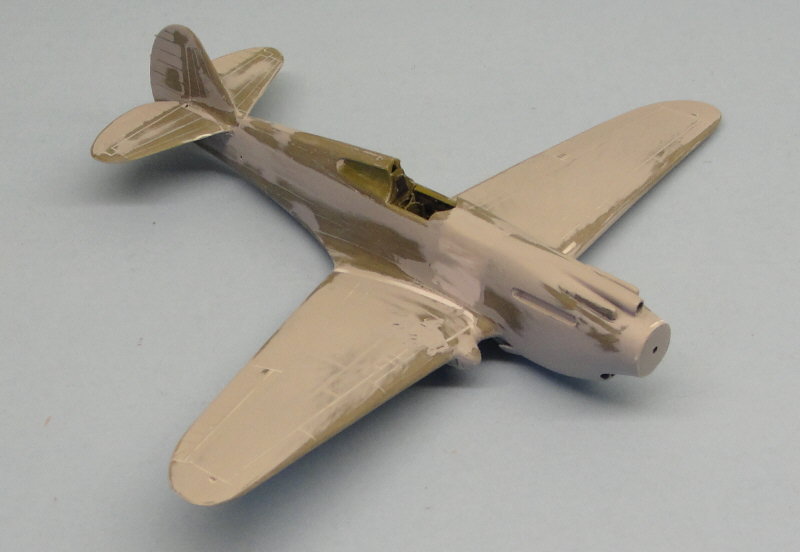

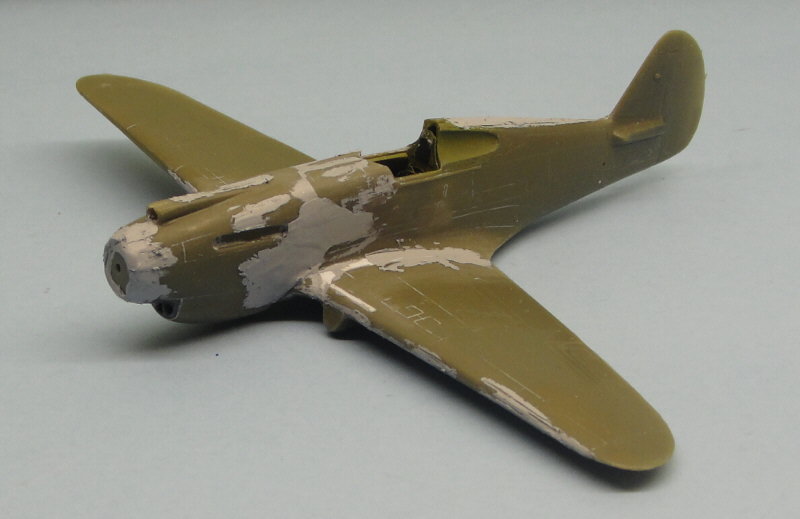

After sanding, a first coat of primer followed

Looking for trouble spots


The basic shape was now more or less straight

But some areas still needed attention

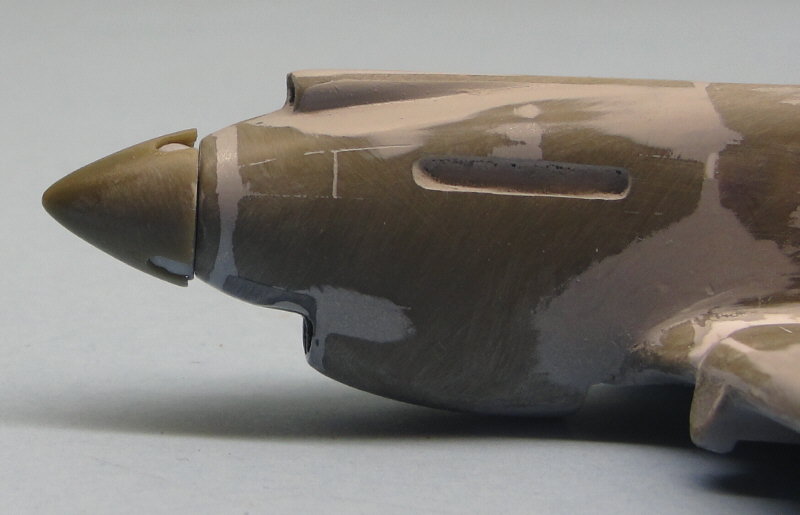

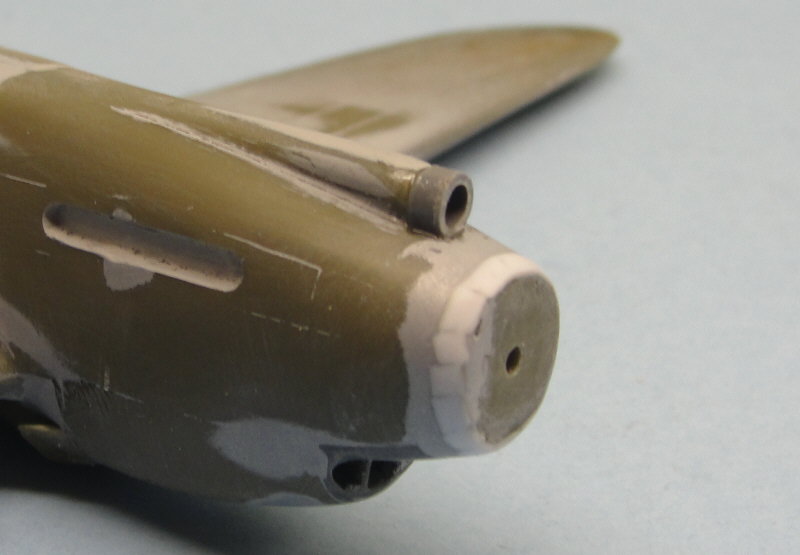

Building the front end up, with little pieces of Evergreen plastic strip

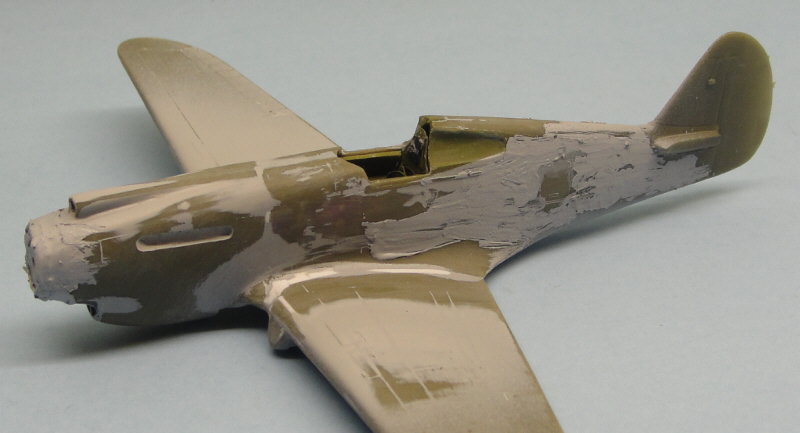

Filler again

And I decided to fill all remaining fuselage panel lines too, since many were already lost

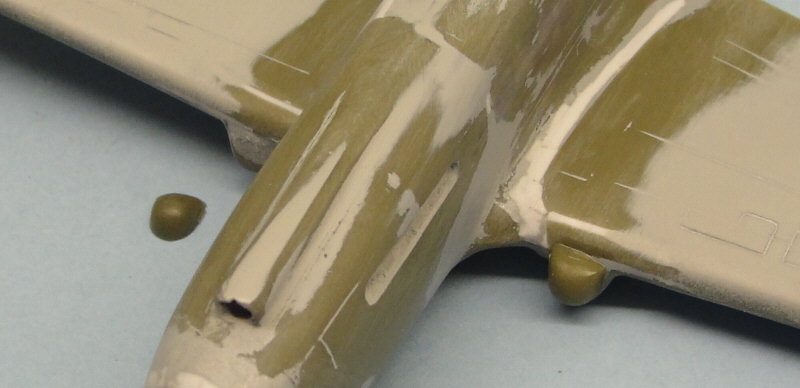

Glueing the front end of the wheel well bulges to the wings

They didn't extend to the upper wing : filler needed again

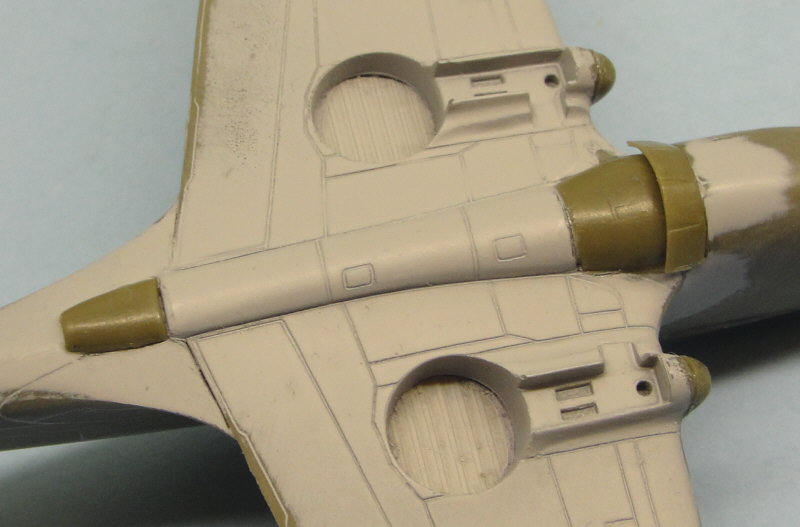

Adding some "belly" elements and the cowling flaps

All reasonable fits

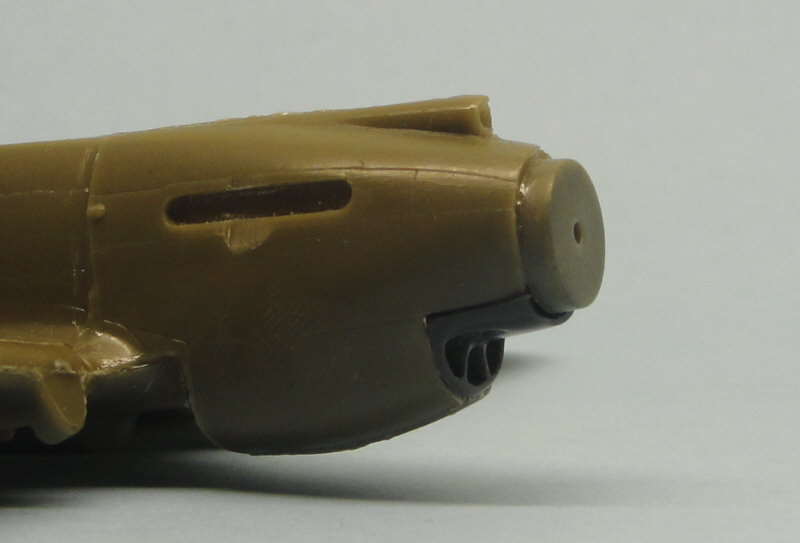

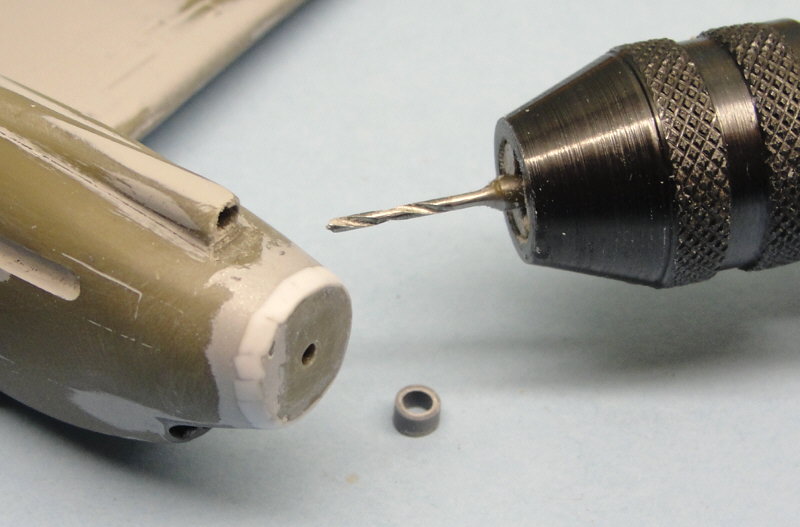

The carburator air intake needed refining


A small piece of plastic rod did the job perfectly

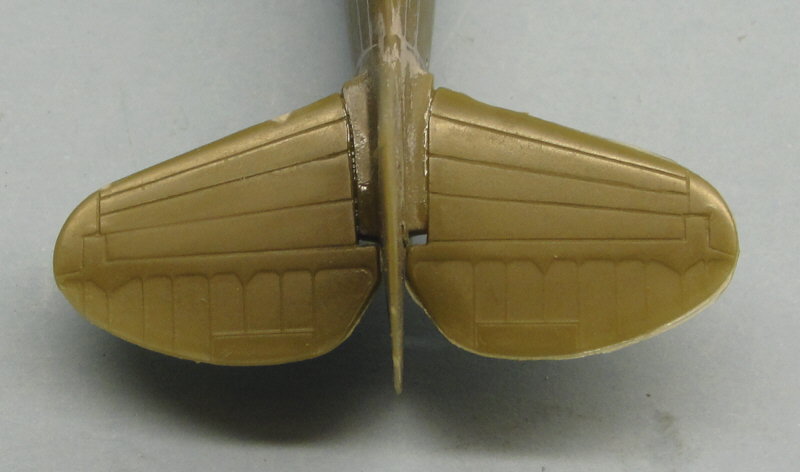

The horizontal stabs were butt joined

Not an ideal fit - certainly not at the wing root front end


Filler again

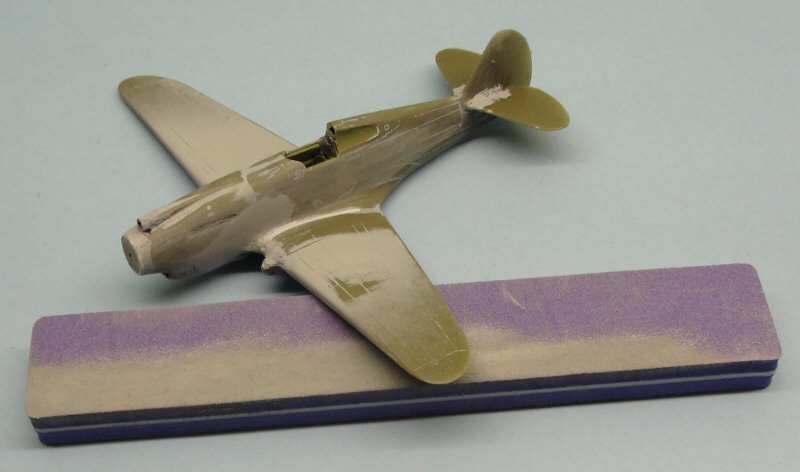

I had bought some sanding sticks at the Dutch Nationals

They were quite useful now... and quick too... I should've used them sooner

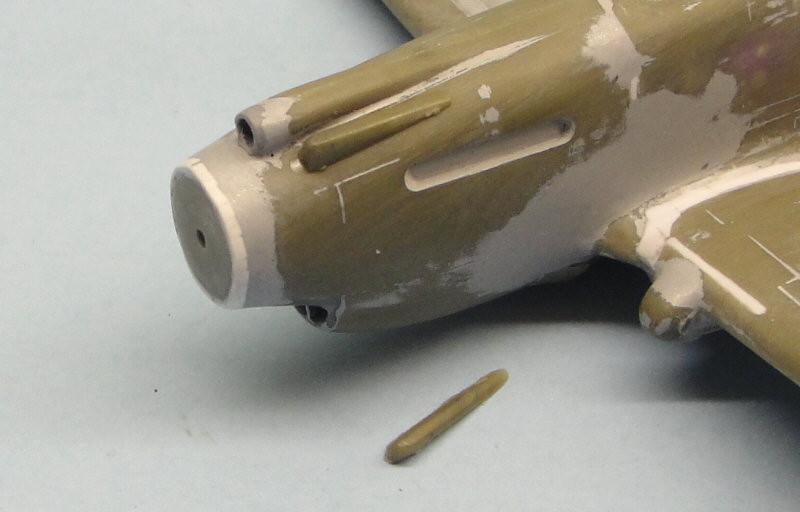

Adding the gun houses

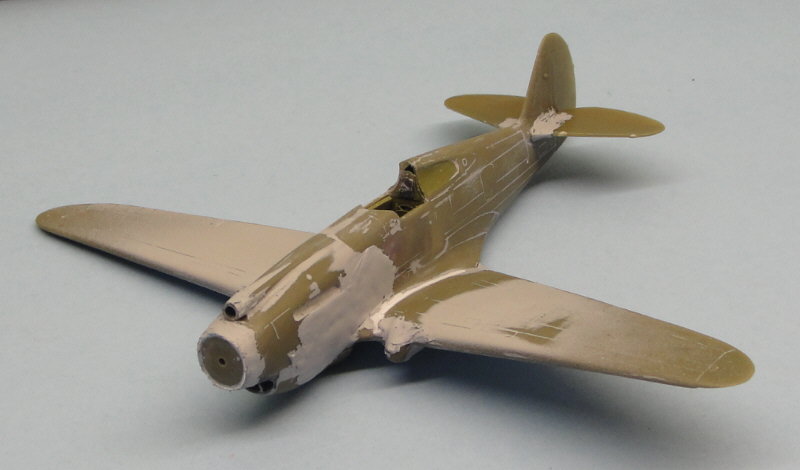

Another coat of primer followed, revealing a few problem spots to attend to


A final sanding session, using sanding paper 800 to 1200

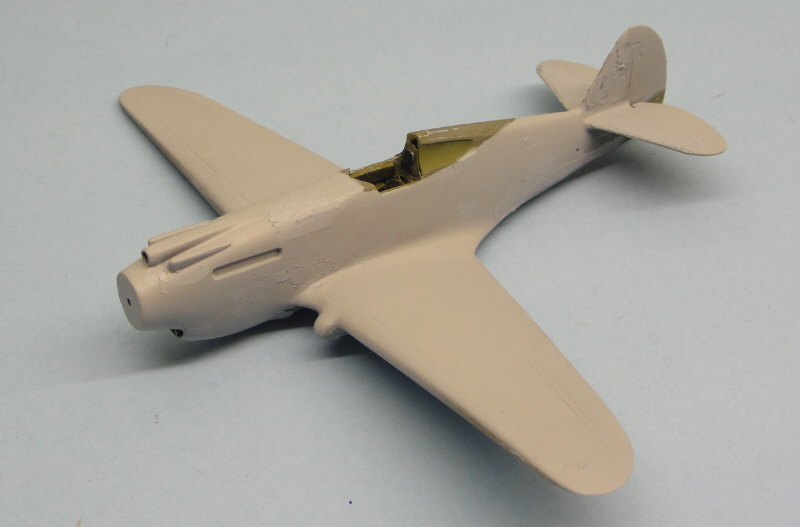

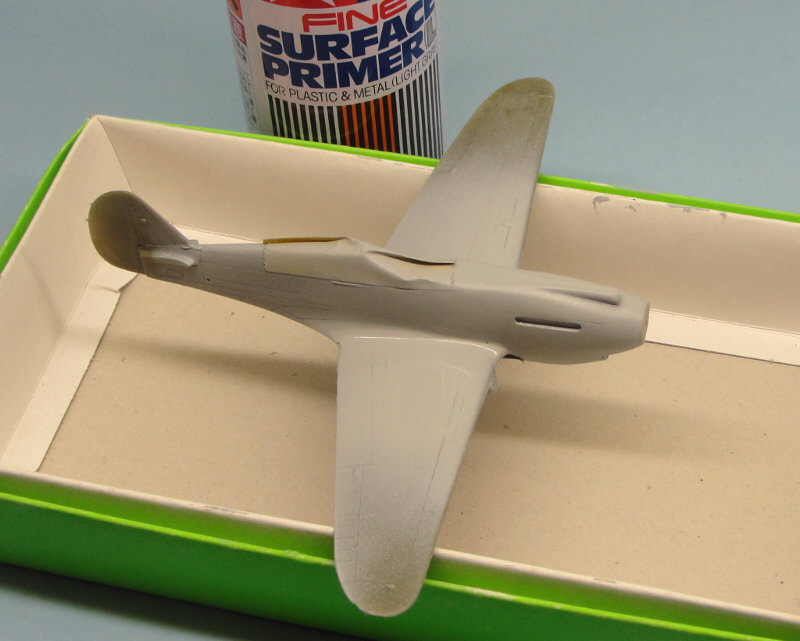

Followed by a final (I hope) coat of primer

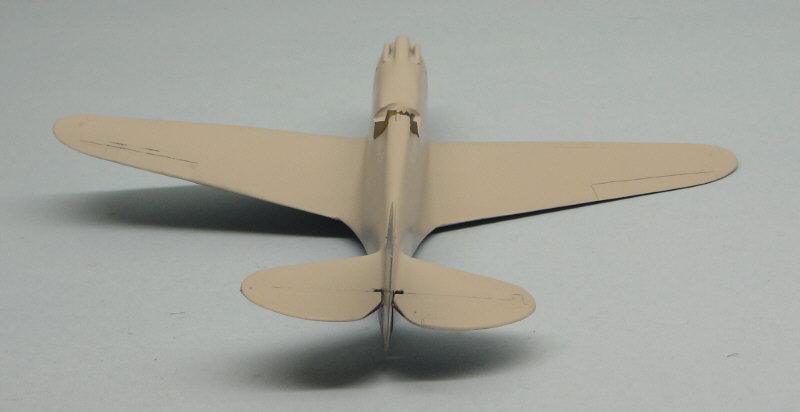

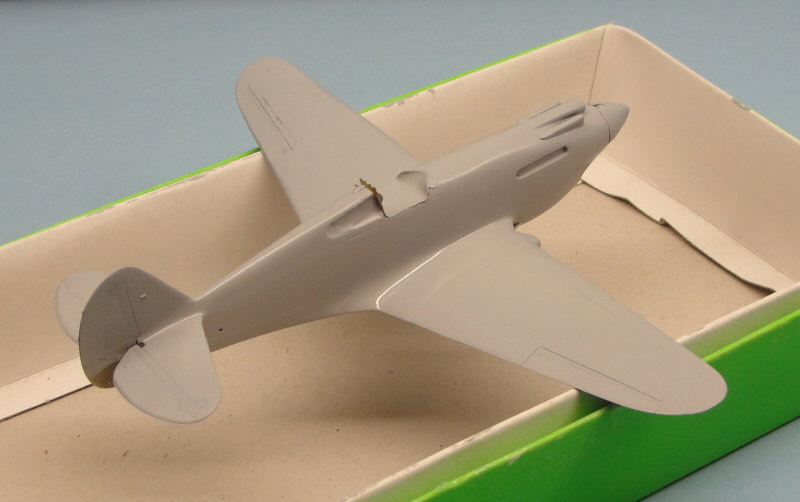

Things look better now


It was a lot of work - but much to my surprise I enjoyed it happy.gif !

Mainly because I got a lot of "job" satisfaction out of it, making this model acceptable again - though it is certainly not perfect, I learned a lot of things can be done with plastic, filler and some time

Now some adventures with paint !

Thank you for your time people

* * *
William De Coster / Belgium be.png / past builds on HS : Plastic Stories

1/72 - Airfix - Spitfre PR.XIX : Part I (incl Flying Legends 2011 show report) - Part II - Part III - Part IV (incl. Pilsenkit 2011 show report pt.1/2) - Part V (incl. Dutch Nationals 2011 show report) new.gif
1/72 - Airfix, Trumpeter and AML - Curtiss Hawk 81 : Part I - Part II - Part III - Part IV - Part Vnew.gif
1/72 - AGA - Polikarpov I-3 : Part I - Part II - Part III - Part IV - Part V

Just like the perfect woman doesn't exist, I will never build a perfect model.
Puts me on a par with God


 Respond to this message
AuthorReply

Claus Dam
(Login ManusNigra)
HyperScale Forums
82.143.216.170

That's the spirit, William!

October 30 2011, 4:15 PM

That is such a nice save. I'm happy you didn't bin it - and not at all surprised that you enjoyed it! A challenge is more fun than a straightforward build - and better for developing skills.

Very well done!
____________________
CD



 Respond to this message
Old Man
(Login vieuxhomme)
HyperScale Forums
75.22.29.242

Helluva Save, Sir!

October 30 2011, 4:56 PM

I expect I would have scrapped the thing for parts, myself. Exceptional work and perseverance!


 Respond to this message

Jim Watts
(Login jagewa)
HyperScale Forums
121.72.236.12

Goodness gracious me!

October 30 2011, 6:27 PM

William, I am in awe at the fix work you have done here. I think you are the fill and sand king!

Wow super work.

Cheers
Jim


 Respond to this message
George Oh
(Login RGeorgeO)
HyperScale Forums
124.180.53.253

I, too, add my congratulations. MOST impressive.

October 30 2011, 8:07 PM

George, out........


 Respond to this message

Dan Smith
(Login NinetyThirdLiberator)
HyperScale Forums
174.24.168.19

DANG, William!

October 30 2011, 8:38 PM

What a slick job! You are really flexing your modeling muscles. Nice to see you are winning with this one.

Certainly will be one to be VERY proud of!

Well done and what a great post.


 Respond to this message
Paul Gibbons
(Login pdg59)
HyperScale Forums
98.66.247.67

That one has file 13 written all over if it were mine. Keep it up William!

October 30 2011, 9:27 PM



 Respond to this message
Chester
(no login)
99.61.227.0

All I could think of while working through this was "oh dear God"

October 31 2011, 1:23 AM

This was a frightening series of photographs, much like surgery on a terrible accident victim. Seems to have turned out all right though.


 Respond to this message
Massimo La Civita
(no login)
93.58.142.206

I wish I were you! Yummmm!

October 31 2011, 3:37 AM

Now, that's some HEAVY job...
...ehm...are you sure the REAL aircreft were not banana-shaped? It could be a configuration to win the engine torque, or not? LOL


 Respond to this message

laurent
(Login loren37)
HyperScale Forums
195.132.140.6

Glad you haven't followed my advice! Tough work man!

October 31 2011, 10:25 AM

It's sure now, you can model a whole aircraft out of a putty tube happy.gif.
Impressive recovery William!


 Respond to this message

Tim Mixon
(Login mixont)
HyperScale Forums
167.73.110.8

Nice Save

October 31 2011, 10:31 AM

William, That is by far the most impressive save I have seen! I probably would have s**t canned it from the start. Thank you for the detailed post, I have learned many things from this.


 Respond to this message

laurent
(Login loren37)
HyperScale Forums
195.132.140.6

Glad you haven't followed my advice! Tough work man!

October 31 2011, 10:26 AM

It's sure now, you can model a whole aircraft out of a putty tube happy.gif.
Impressive recovery William!


 Respond to this message

laurent
(Login loren37)
HyperScale Forums
195.132.140.6

oops, double post.

October 31 2011, 10:34 AM



 Respond to this message

Ted Preston
(Login TeddieP)
HyperScale Forums
64.4.69.110

I Knew You Could Do It!!

October 31 2011, 2:44 PM

To: Master Sargeant DeCoster
From: Military Modelling HQ

Please be advised that in honour of your diligence in the face of adversity, your incredible bravery on the front lines of modelling, and your shining example of perseverance against all odds, you are hereby awarded the Meritorious Modelling Service Medal (MMSM) First Class with Clasp. Well done, Sarge!!

Brig. Gen. Preston
Office Of Inspector General,
Awards And Honours Division,
Military Modelling HQ


Current Build:
Mad About Migs Pt. 1; Mad About Migs Pt. 2; Mad About Migs Pt. 3; Mad About Migs Pt. 4; Mad About Migs Pt. 5

Tall Tales:
Kanal Kampf: A Spitfire Story
Cold War Incident
The Lucky Mig

Previous WIP Builds:
Matilda Makeover Pt.1; Matilda Makeover Pt.2; Matilda Makeover Pt.3; Matilda Makeover Finish;

The Big Spit Pt.1; The Big Spit Pt.2; The Big Spit Pt.3; The Big Spit Pt.4; The Big Spit Pt.5; The Big Spit Pt.6;
The Big Spit Pt.7; The Big Spit Pt.8; The Big Spit Pt.9; The Big Spit Pt.10; The Big Spit Pt.11; The Big Spit Finish;

Me109 Pt.1; Me109 Pt.2; Me109 Pt.3; Me109 Finish;

Vickers Tank Pt.1; Vickers Tank Pt.2; Vickers Tank Pt.3; Vickers Tank Pt.4; Vickers Tank Pt.5; Vickers Tank Pt.6; Vickers Tank Finish;

Connies Pt.1; Connies Pt.2; Connies Pt.3; Connies Pt.4; Connies Pt.5; Connies Pt.6; Connies Pt.7; Connies Finish



 Respond to this message
Anonymous
(no login)
71.165.113.210

Super job on this one, What great work!! n/t

October 31 2011, 6:46 PM



 Respond to this message
Victor Scheuerman
(Login ffirefighter13)
HyperScale Forums
173.181.93.85

Un friggin believable.....

November 1 2011, 6:21 AM

After you took the industrial wood cutter to that airframe I thought 'that's it', William has lost it......

My jaw was hanging by the time I arrived at the end of the post!

Cheers, Vic


 Respond to this message
Anonymous
(Login pgp000)
HyperScale Forums
87.116.85.239

William - you brave man you, brilliant save!!!

November 1 2011, 10:15 AM

Can't say I visit a heap of forums, but that sure is a rare and truly jaw-dropping!

Sorry, I just can't resist the "The most accurate model - my @$$!!!" thought.

Keep going,
Peter


 Respond to this message

Jerry P
(Login Jer64SS)
HyperScale Forums
174.134.9.220

Could I send you a couple of my projects

November 1 2011, 7:45 PM


to save from the scrap heap? happy.gif

Jer


 Respond to this message
bob mack
(no login)
68.32.122.49

just amazing...your crazy and awesome...a lot of work...wonderful ending

November 1 2011, 7:51 PM



 Respond to this message

James Venables
(Login jvenables)
HyperScale Forums
202.136.242.237

Yikes - I have one of those in the stash!

November 8 2011, 3:43 AM

I didn't realise the fit was so hideous!!! Fabulous save though - well done indeed.


 Respond to this message
